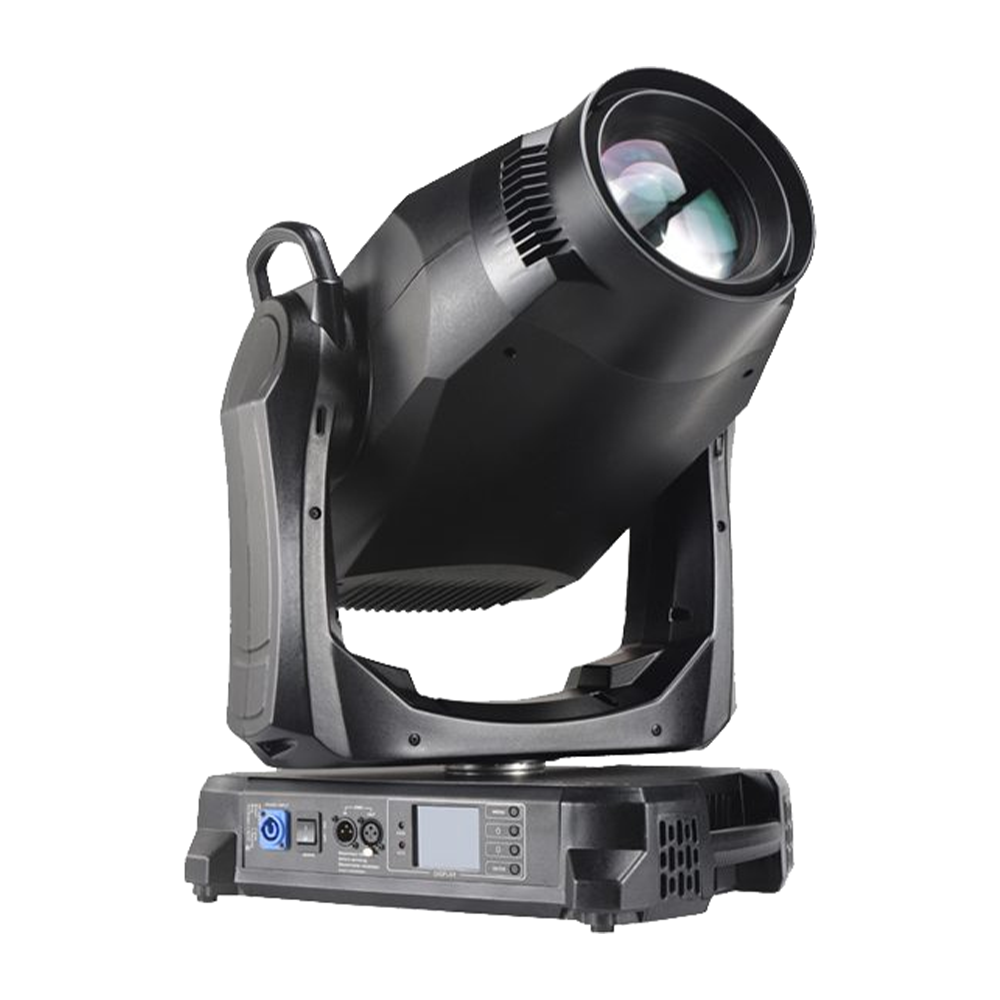

Name: 1200W/1000W BSW WITH PROFILE
Brand: UNIBOND
SKU: UB-1200 PROFLIE
Rating: 5 (1 reviews)

SPECIFICATION
Brochure
Effect
Dimensions

OPTICAL SYSTEM

Light source: 1200W/1000W
Light source life: 20000 hours
Color temperature: 6500K (customizable)
Gobo angle: 5.5°~50°
Optical len: high-precision glass lens
Dimming: 0-100% linear dimming
Focusing: 0-100% Electronic linear HD focus

POWER SYSTEM

Rated voltage: AC100-240V 50/60Hz
Power: 1350W/1150W
DMX connectors: 3 pin or 5 pin XLR IN / OUT
Power connectors: Srandard power head input (Customizable)

BODY FEATURE

Housing: One-piece die-casting/aerospace magnesium alloy in black color
Working temperature: -20~45°C (Other customization option)
Product size: 47.11*33.5*82cm
Carton size: 71*60*85cm
Net weight: 38kg
Gross weight: 44kg
Protection grade: IP20

DYNAMIC EFFECTS

Framing: 0°to 90° Angle all-round framing can generate different sizes and shape graphics.
Rotating gobo wheel: 6 optional gobos, adjustable speed shaking and two-way rotation, gobo rotation with 16Bit precision fine-tuning.
Static gobo wheel: 8 optional gobos, adjustable speed shaking and two-way rotation.
Color wheel: 1*7 color effect chips, two-way rainbow effect, half-color and linear adjustment.
CMY: Linear colour mixing
Prism: 1 quadrangular prism, 1 quadrangular mirror, two-way rotation adjustable speed.
Fogging: 1 independent fogging mirror
Strobe: 1-25Hz fast electronic strobe per second, with pulse strobe, synchronous asynchronous strobe effect.

CONTROL SYSTEM

Pan/Tilt: 540°/270°, automatic position correction system, 16bit precision fine-tuning.
Display & Control: Display & Control: 2.8-inch touch display screen with control pannel, Chinese and English can be switched at will.
DMX: DMX offers both wired and wireless transmission, allowing for convenientand quick software upgrades.
Cooling system: Copper & fan cooling structure, temperature intelligent monitoring, self-adjusting speedfan, overheating protection.
Control mode: DMX512, RDM, self-propelled, voice control, scene, master-slave mode, optional wireless transmission.
Control channel: 41 channels

Unibond company is a RGB laser light source leader , develped 300W rgb laser , 720w/480w/360w/260w laser . we also has been dedicated to R&D, manufacture and sales of stage lighting, outdoor architectural series, LED series,HID lamp series.
