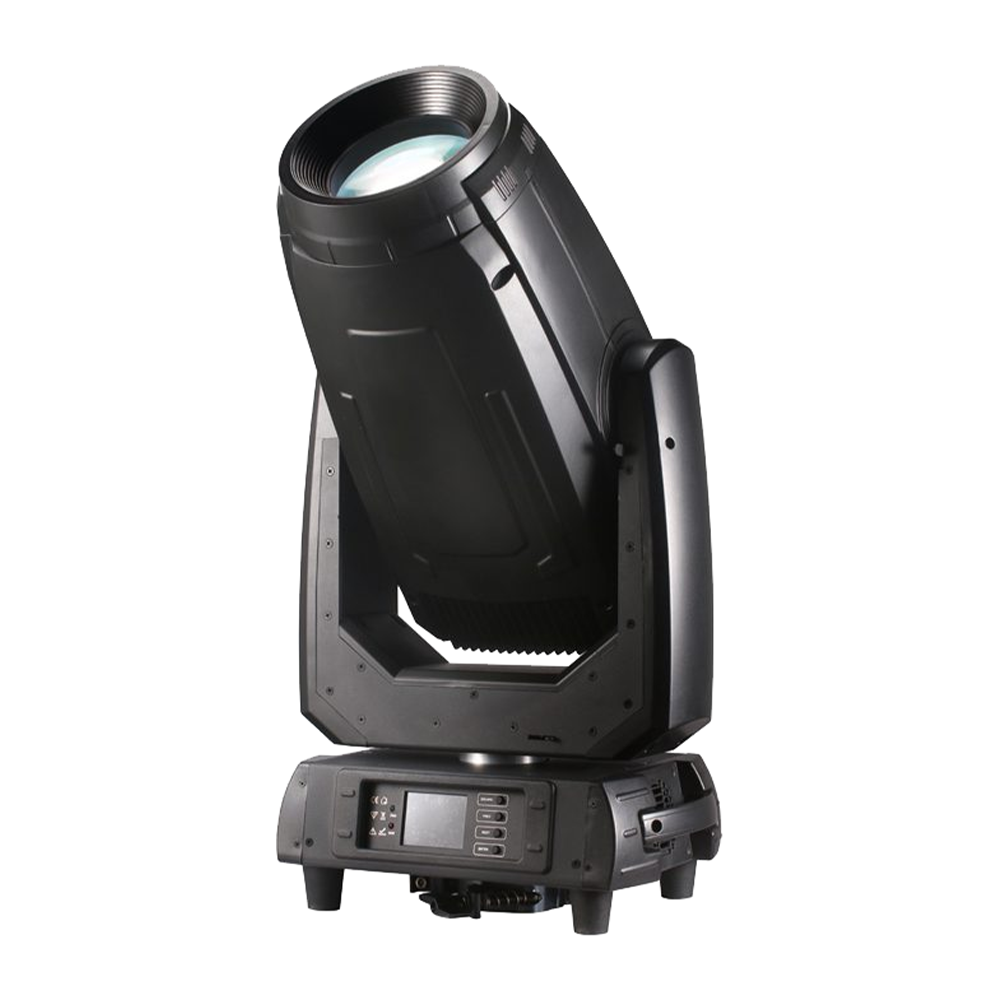

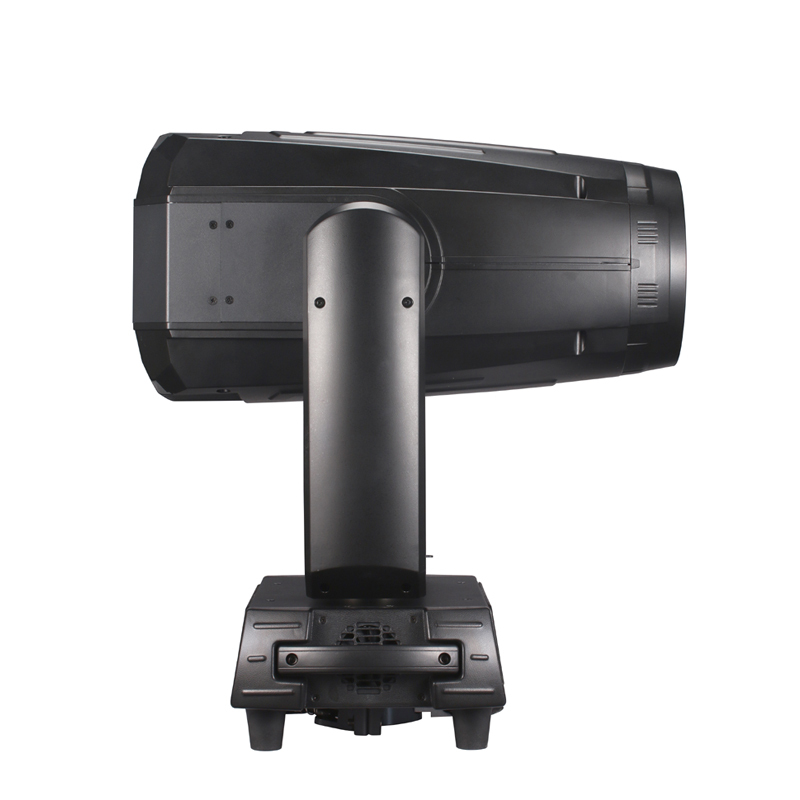

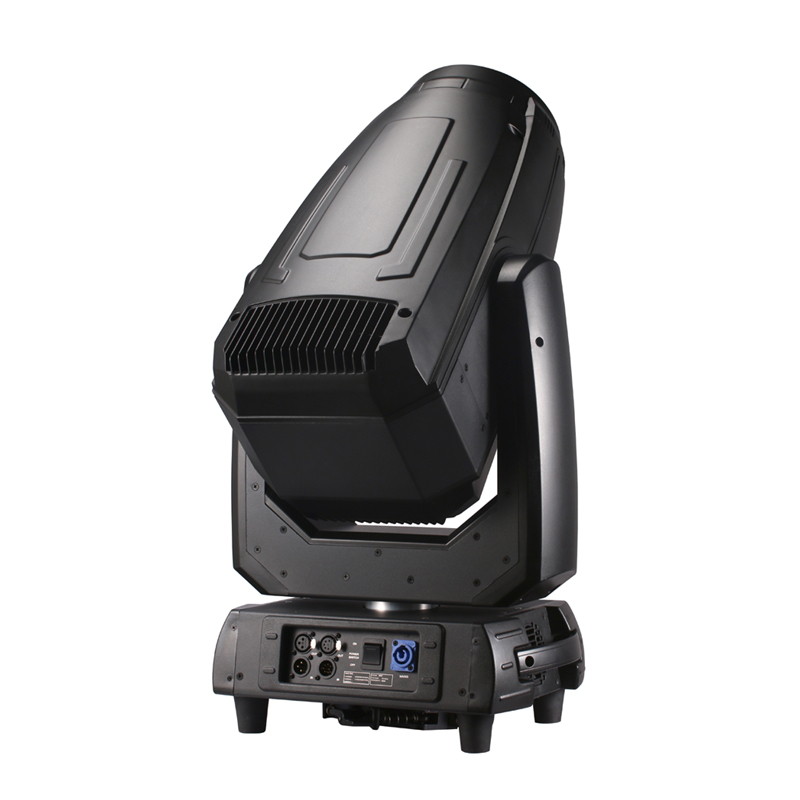

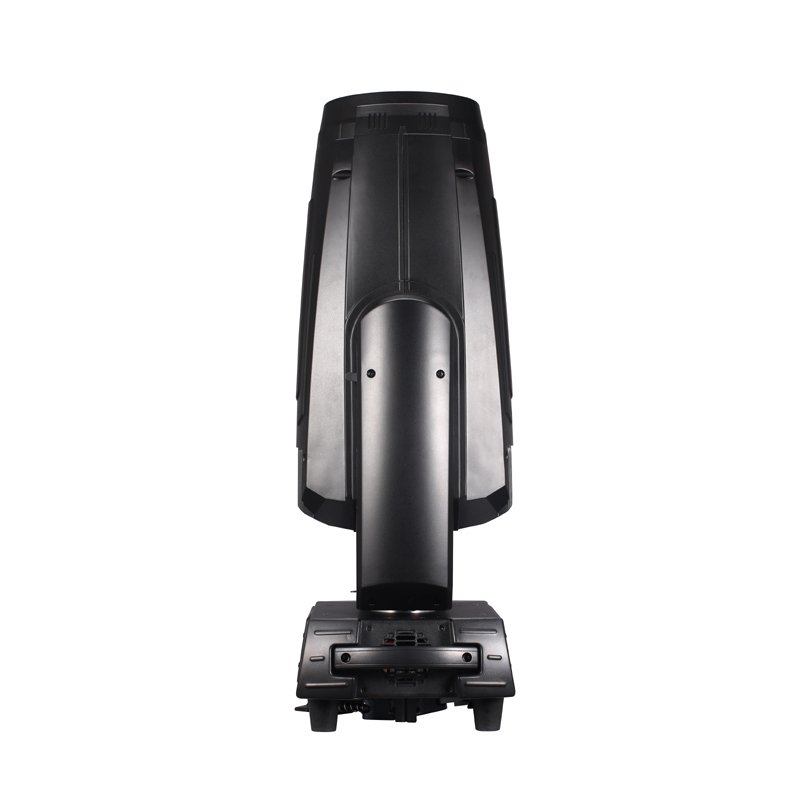

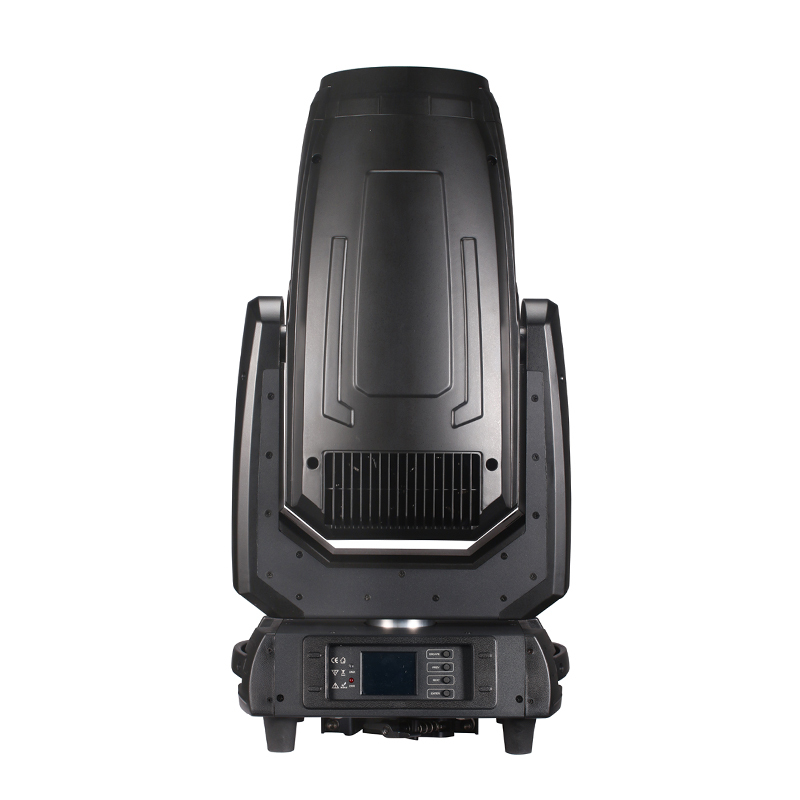

800W BSW WITH PROFILE
No.UB-800 PROFILE
SPECIFICATION
POWER SYSTEM
- Rated voltage: AC100-240V,50/60Hz
- Power rate: 1000W
- DMX connectors: 3 pin or 5 pin XLR IN / OUT
- Power connectors: Srandard power head input (Customizable)
OPTICAL SYSTEM
- Light source: 800W LED module
- Light source life: 20,000 hours
- Color temperature: 6500K, display finger: 70, 80, 90 (cut into the display finger)
- Dimming: 0-100% linear dimming
- CMY: infinite color mixing
- CTO: linear color temperature adjustment
- Gobo Angle: 5.5-50° angle linear high speed zoom
- Focusing: 0-100% Electronic linear HD focus
LIGHT BODY FEATURE
- Protection level: Ip20
- Net weight: 26kg
- Luminaire size: 38*24*74cm
- Gross weight: 30kg (carton 1 pack 1) / 94kg (airbox 1 pack 2)
- Package size: 64*48.5*68.5cm (carton 1 pack 1) 96*45*99cm (Airbox 1 pack 2)
DYNAMIC EFFECTS
- Framing: 0°to 90° Angle all-round framing can generate different sizes and shapes graphics.
- Rotating gobo wheel: 7 Rotating gobo variable speed & two-way rotation with 16Bit precision fine-tuning.
- Static gobo wheel: 9 Static gobo variable speed & two-way rotation
- Effect tray: Dynamic effect tray can simulate flame, water and other effects.
- Color wheel: 2 color plates have 10 kinds of color plates, which can achieve two-way rainbow effect, half-color and linear adjustment.
- Optical coil: 5-100% linear adjustment, with a variety of macro effects
- Stroboscopic: 1-25Hz per second fast electronic stroboscopic, with pulse stroboscopic, synchronous asynchronous stroboscopic effect
- Prism: 1 hexagonal prism can be rotated bidirectional
- Atomization: 2 independent atomizing mirrors
CONTROL SYSTEM
- Display: Color 2.8 inch touch screen, Chinese and English can be switched at will
- Pan: Horizontal Angle 540° (16BIT precision fine-tuning), automatic error correction
- Tilt: vertical Angle 270° (16BIT precision fine-tuning), automatic error correction
- Control mode: DMX512, RDM, self-walking, voice control, scene, master-slave mode, optional wireless transmission
- Control channel: 42/43/49/50 channels
