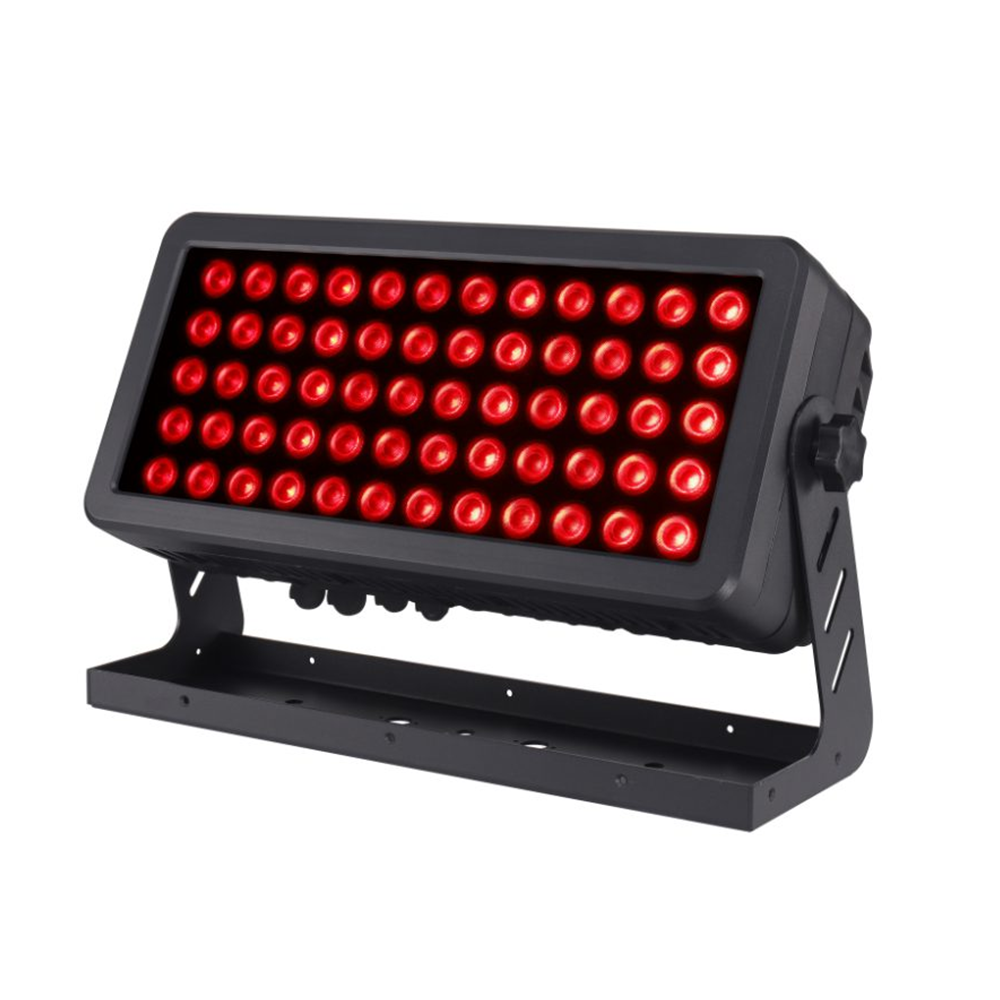

High Power City Color Light IP66

SPECIFICATION

Voltage: AC90-245V,50-60HZ
Power consumption: 1100w/800w
LED: 60 pc high-power RGBW 15W/10W 4IN1 LEDs
Lifetime: 20,000 hours expected
Lens angle: 5°/10°/15°/25°/40°/60° optional
Dimmer: 0-100% 32bit linear dimming
Strobe: 1-20 times/second strobe
Protocol: USITT DMX-512, RDM
DMX channels: 4/6/8 channels
4 Dimming curves: linear, square, inverse square, S curve
Stand-alone mode: Color step,Color shade,Auto,Slave, Static color setting, Auto program choice.
Housing: Aluminium.
Housing color: Black .
Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F
Power Connections: PG Plug/TRUECON In（optional）
Data Connections: 3-pin (or 5pin optional) XLR In/Out for DMX, linking up to 32 units display board can be 180°in turn, it can be fitted in different setting.
Display: Chassis heat dissipation + forced air
Heat dissipation mode: With IP low noise fan
IP Rating: IP66
Size：50*170*332mm 15kg
Packing Size：620*320*350mm 16.5kg
Case size: 610*530*450mm 46.2Kg (2pc/CTN)

Unibond company is a RGB laser light source leader , develped 300W rgb laser , 720w/480w/360w/260w laser . we also has been dedicated to R&D, manufacture and sales of stage lighting, outdoor architectural series, LED series,HID lamp series.
