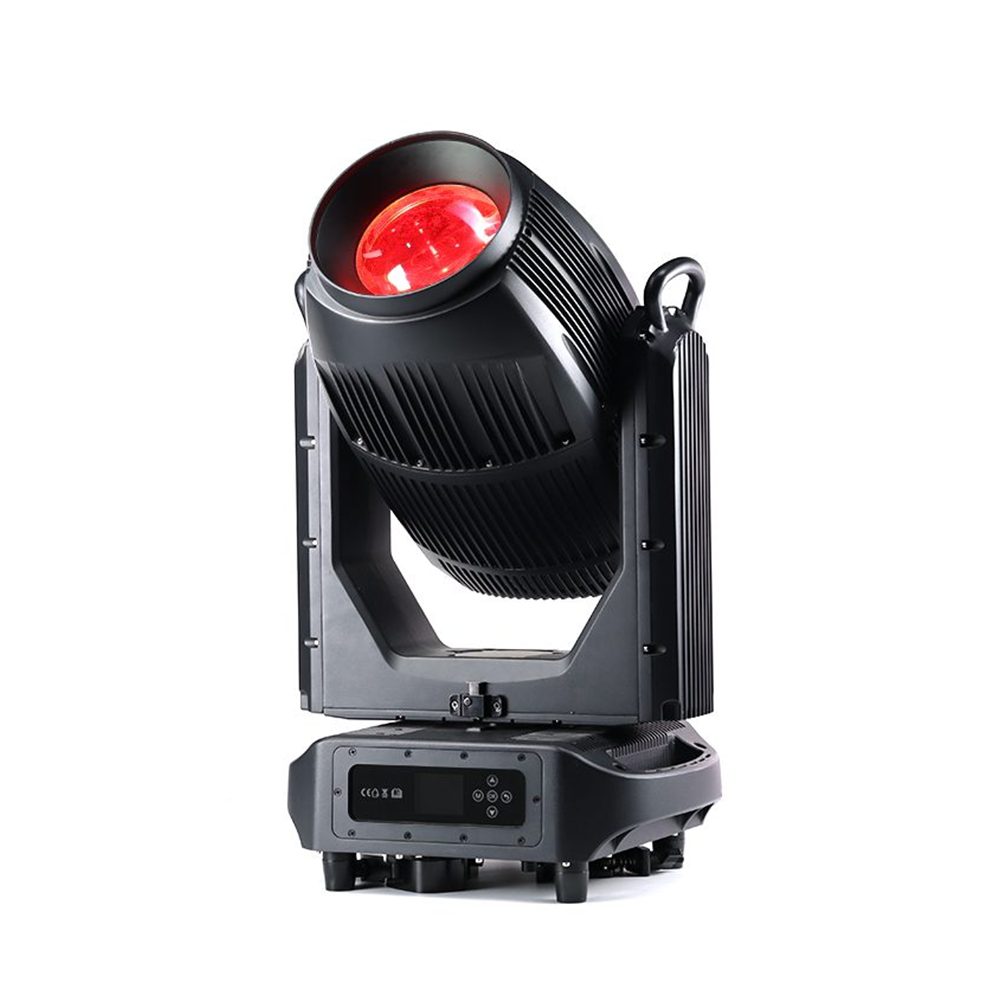

Name: IP65 500W BSW Moving Head
Brand: UNIBOND
SKU: UB-LED500
Rating: 5 (1 reviews)

SPECIFICATION
Brochure
Effect
Dimensions

POWER SYSTEM

Voltage: AC 100-240V 50/60Hz
Max Power: 700W
DMX Connectors:3pin or 5pin XLR IN/OUT
Power connector: Waterproof connectors

OPTICAL SYSTEM

Light Source: 800W LED module
Average lifetime: 20,000 hours
Dimmer: 0-100% smooth dimming Infinite color mixing
CMY: Infinite color mixing
CTO: 3200K-8000K Linear
Zoom Angle: 2.5-45°

DYNAMIC EFFECT

Strobe: 1-20Hz with synchronous asynchronous strobe effect.
Static gobo wheel: 12 gobos+blank, with shake and bilateral rotation
Rotating gobo wheel: 7 gobos+biank, with shake and bilateral rotation
Color wheel: 13 fixed color+blank, with half color and linear adjustment function, can achieve bilateral rainbow effect
Prism: Two independent rotation prism disk, can produce a variety of prism combination effect
Frosting: a frosting len can create multiple effects.

CONTROL SYSTEM

Display: Easy-to-use 5-button control panel with LCD display
Pan/Tilt: 540°/210°, 16 bit fine tuning
Control mode: DMX-512 ,Master-slave, Auto, RDM
DMX Channels: 26CH

BODY FEATURE

Size: 39X31X70.8cm 35KG
Net weight: 5KG
IP rating: Ip65
Working Temperature: -10℃~40℃

Unibond company is a RGB laser light source leader , develped 300W rgb laser , 720w/480w/360w/260w laser . we also has been dedicated to R&D, manufacture and sales of stage lighting, outdoor architectural series, LED series,HID lamp series.
