IP65 MINI LASER 100W/150W/200W IP65 LASER MOVING

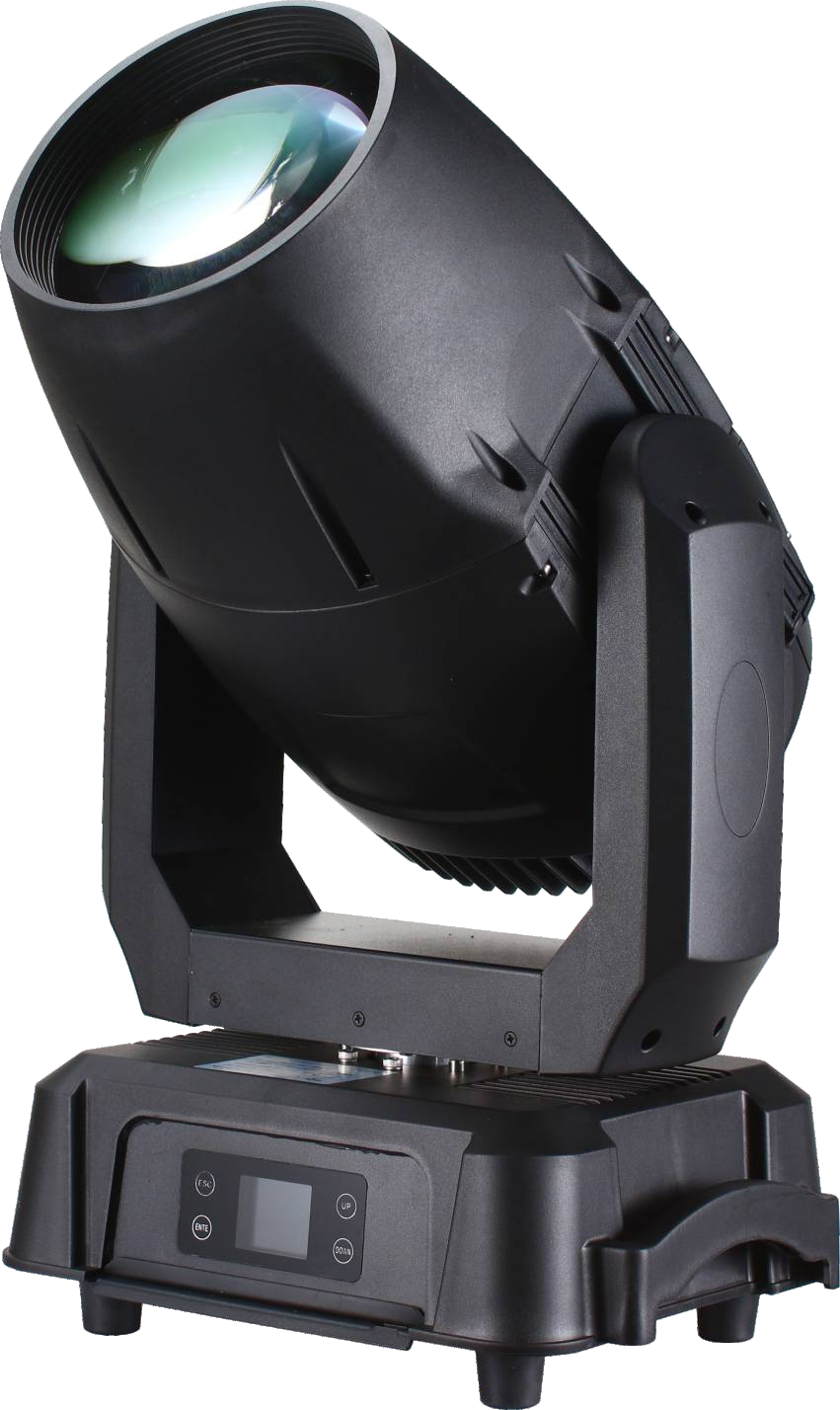

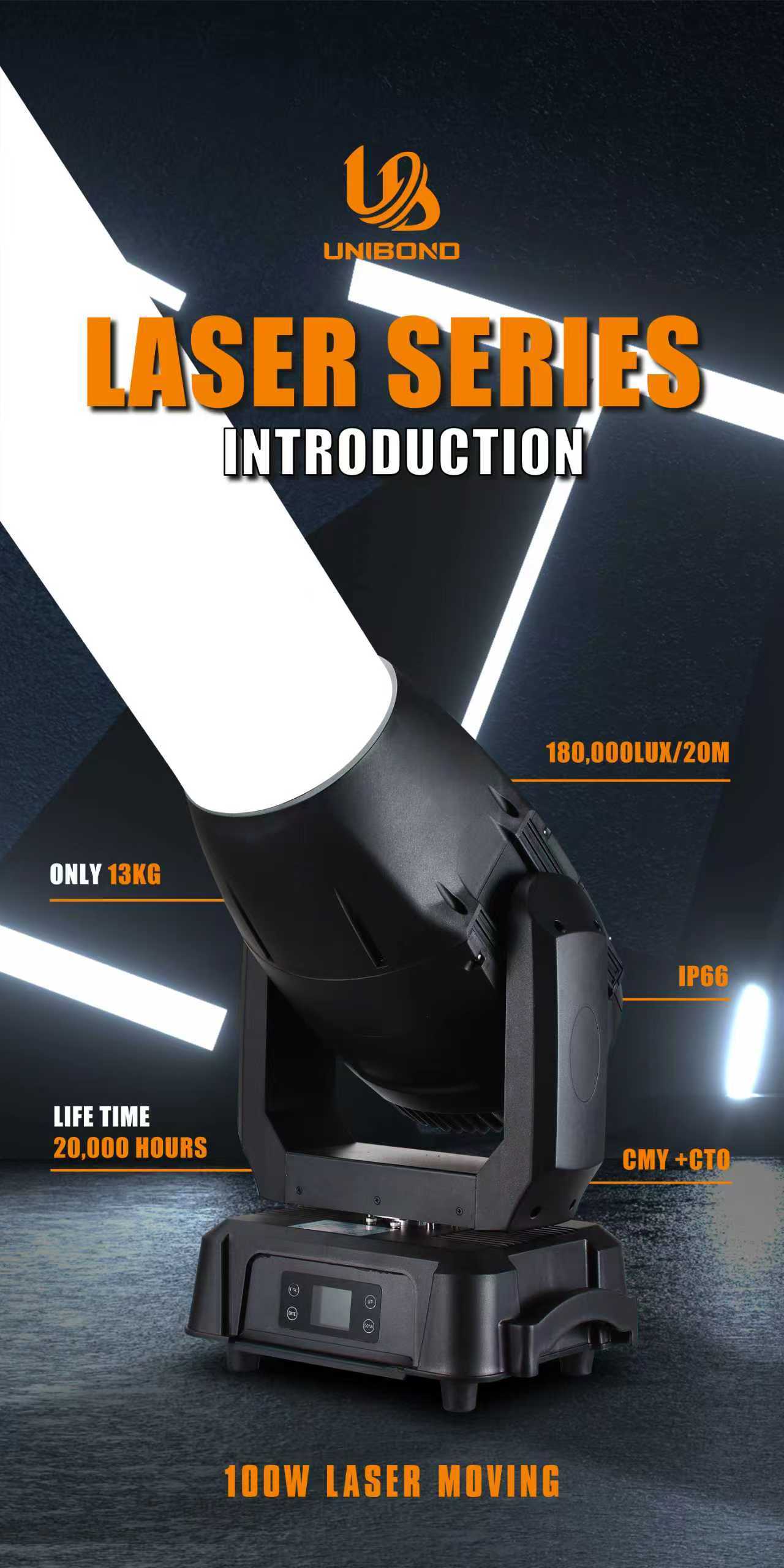

No. UB-PL100 Beam Laser
Carbon fiber chassis. Phosphor laser source. IP65 rated. A new standard for energy-efficient stage and outdoor illumination.

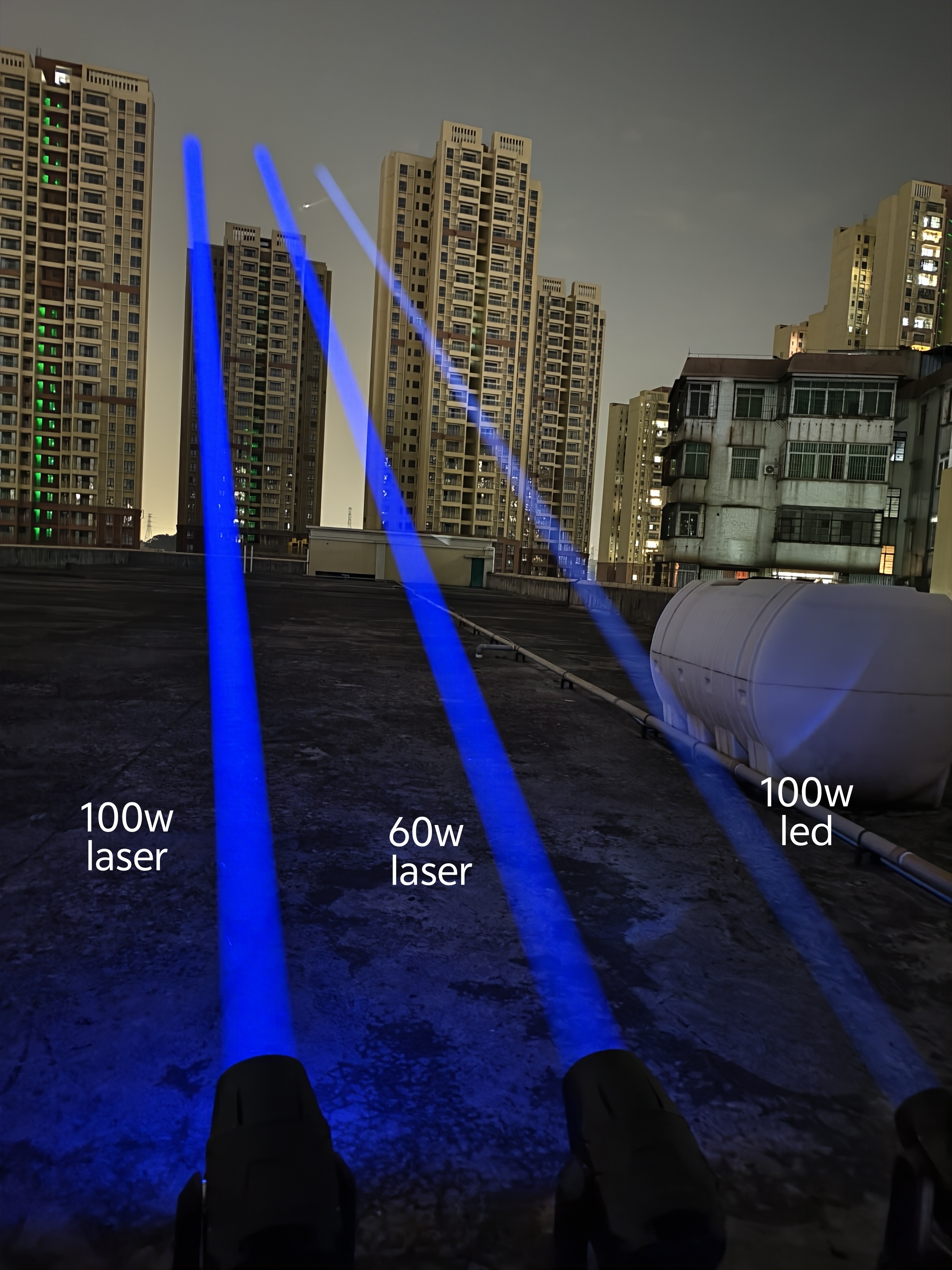

70% Less Energy, Superior Brightness

Total power 180W, delivering up to 18 Lux @ 20m — surpassing traditional Osram 371W discharge lamps while cutting energy consumption by up to 70%.

Solid Beam · Class-Leading Safety

Delivers a powerful, stable beam with first-class laser safety certification. Uniform light output with consistent color temperature across the entire throw distance.

Carbon Fiber · Only 13kg · IP65

Lightweight carbon fiber housing at just 13kg — the lightest in class. Fully sealed IP65 protection for reliable all-weather outdoor deployment.

20,000-Hour Lifespan

10× longer than traditional discharge lamp sources.



  • IP65 MINI LASER 100W/150W/200W IP65  LASER MOVING
  • IP65 MINI LASER 100W/150W/200W IP65  LASER MOVING
  • IP65 MINI LASER 100W/150W/200W IP65  LASER MOVING
  • IP65 MINI LASER 100W/150W/200W IP65  LASER MOVING
  • IP65 MINI LASER 100W/150W/200W IP65  LASER MOVING
  • IP65 MINI LASER 100W/150W/200W IP65  LASER MOVING
  • IP65 MINI LASER 100W/150W/200W IP65  LASER MOVING
  • IP65 MINI LASER 100W/150W/200W IP65  LASER MOVING

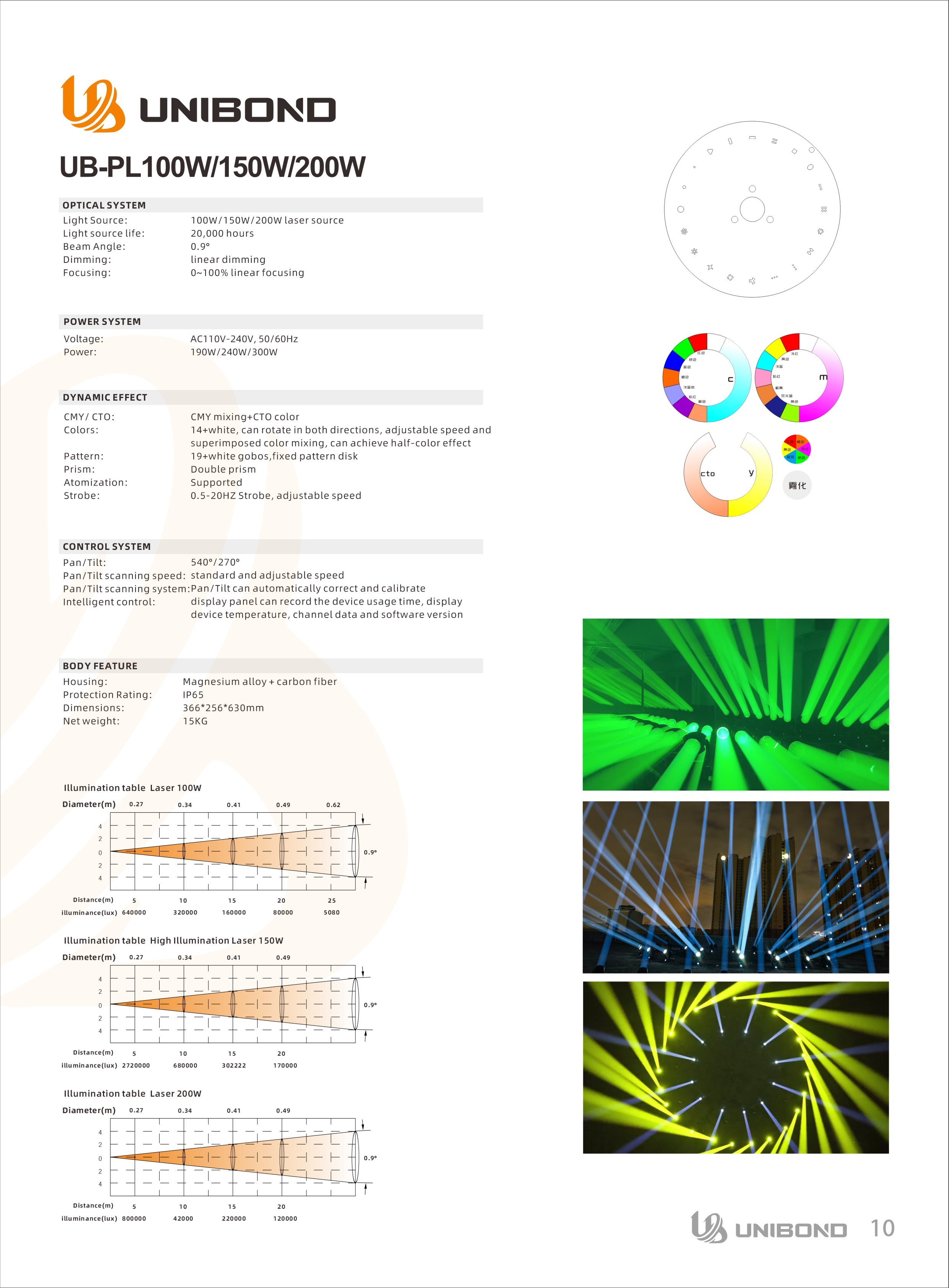

Description

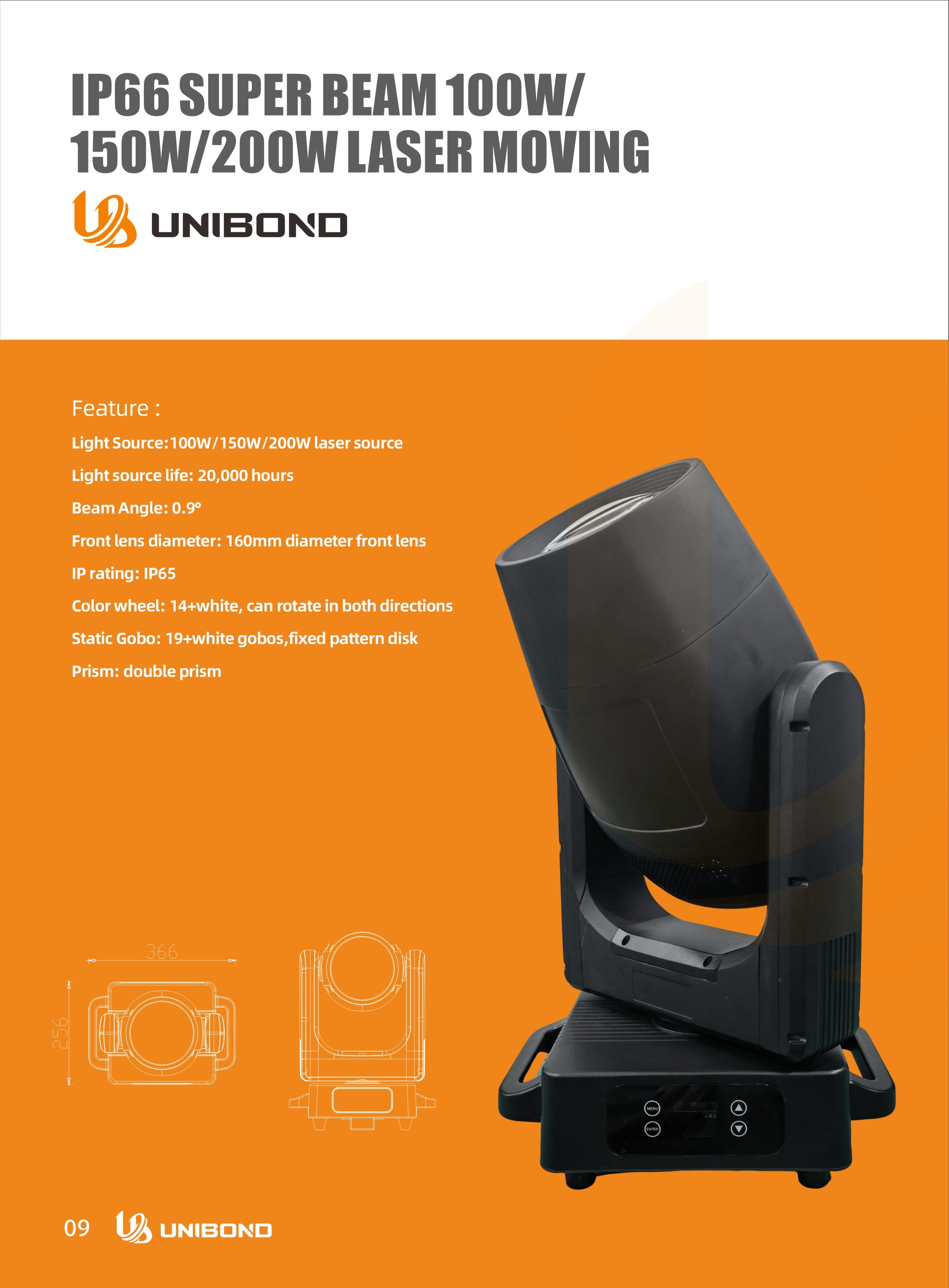

FEATURE :
Light Source:100W/150W/200W laser source
Light source life: 20,000 hours
Beam Angle: 0.9°
Front lens diameter: 160mm diameter front lens
IP rating: IP65
Color wheel: 14+white, can rotate in both directions
Static Gobo: 19+white gobos,fixed pattern disk
Prism: double prism

OPTICAL SYSTEM
Light Source: 100W/150W/200W laser source
Light source life: 20,000 hours
Beam Angle: 0.9°
Dimming: linear dimming
Focusing: 0~100% linear focusing

POWER SYSTEM
Voltage: AC110V-240V, 50/60Hz
Power: 190W/240W/300W

DYNAMIC EFFECT
CMY/ CTO: CMY mixing+CTO color
Colors: 14+white, can rotate in both directions, adjustable speed and superimposed color mixing, can achieve half-color effect
Pattern: 19+white gobos,fixed pattern disk
Prism: double prism
Atomization: supported
Strobe: 0.5-20HZ Strobe, adjustable speed

CONTROL SYSTEM
Pan/Tilt:  540°/270°
Pan/Tilt scanning speed: standard and adjustable speed
Pan/Tilt scanning system: Pan/Tilt can automatically correct and calibrate
Intelligent control: display panel can record the device usage time, display device temperature, channel data and software version

BODY FEATURE

Housing: Magnesium alloy + carbon fiber
Protection Rating: IP65
Dimensions: 366*256*630mm
Net weight: 15KG
