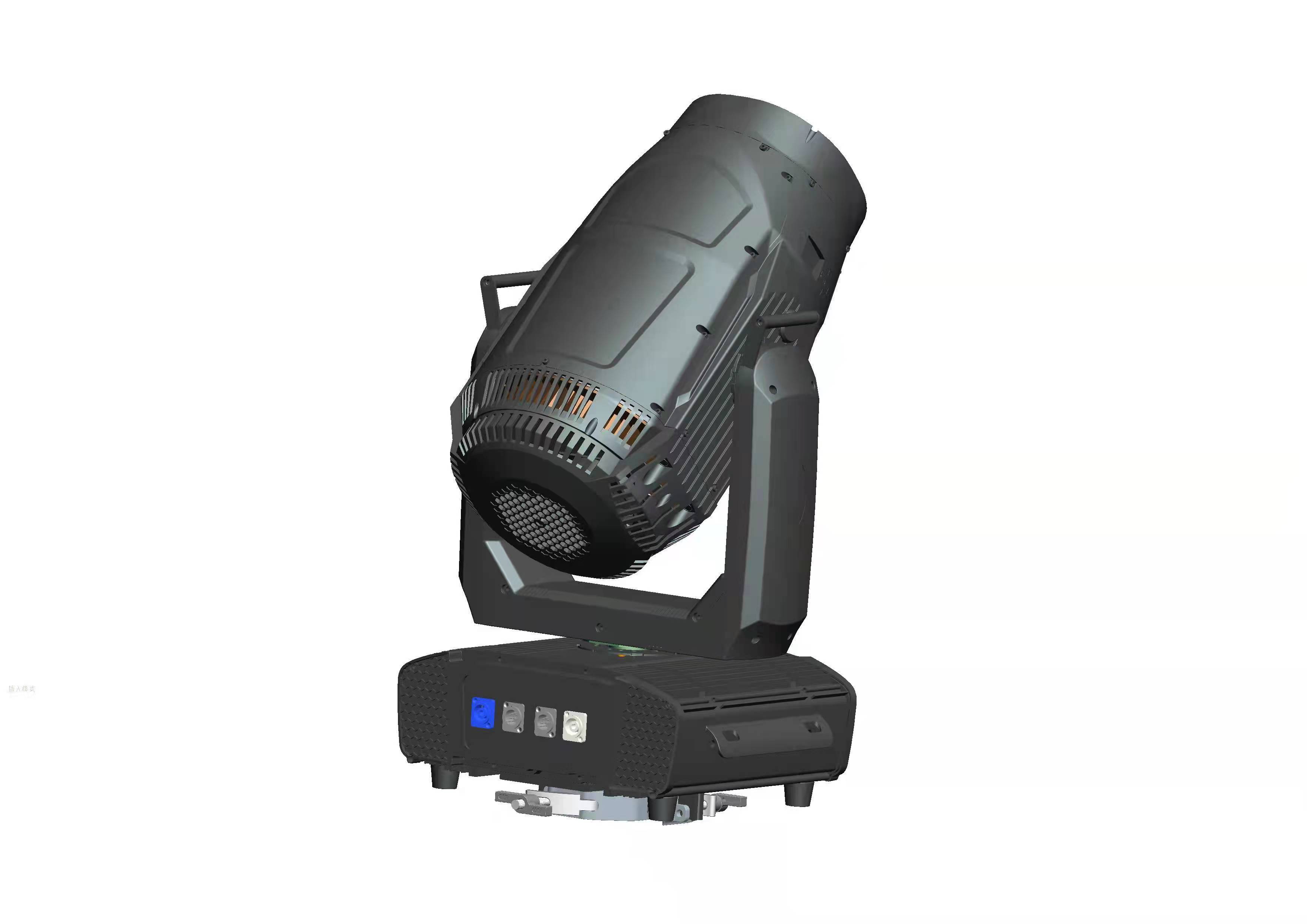

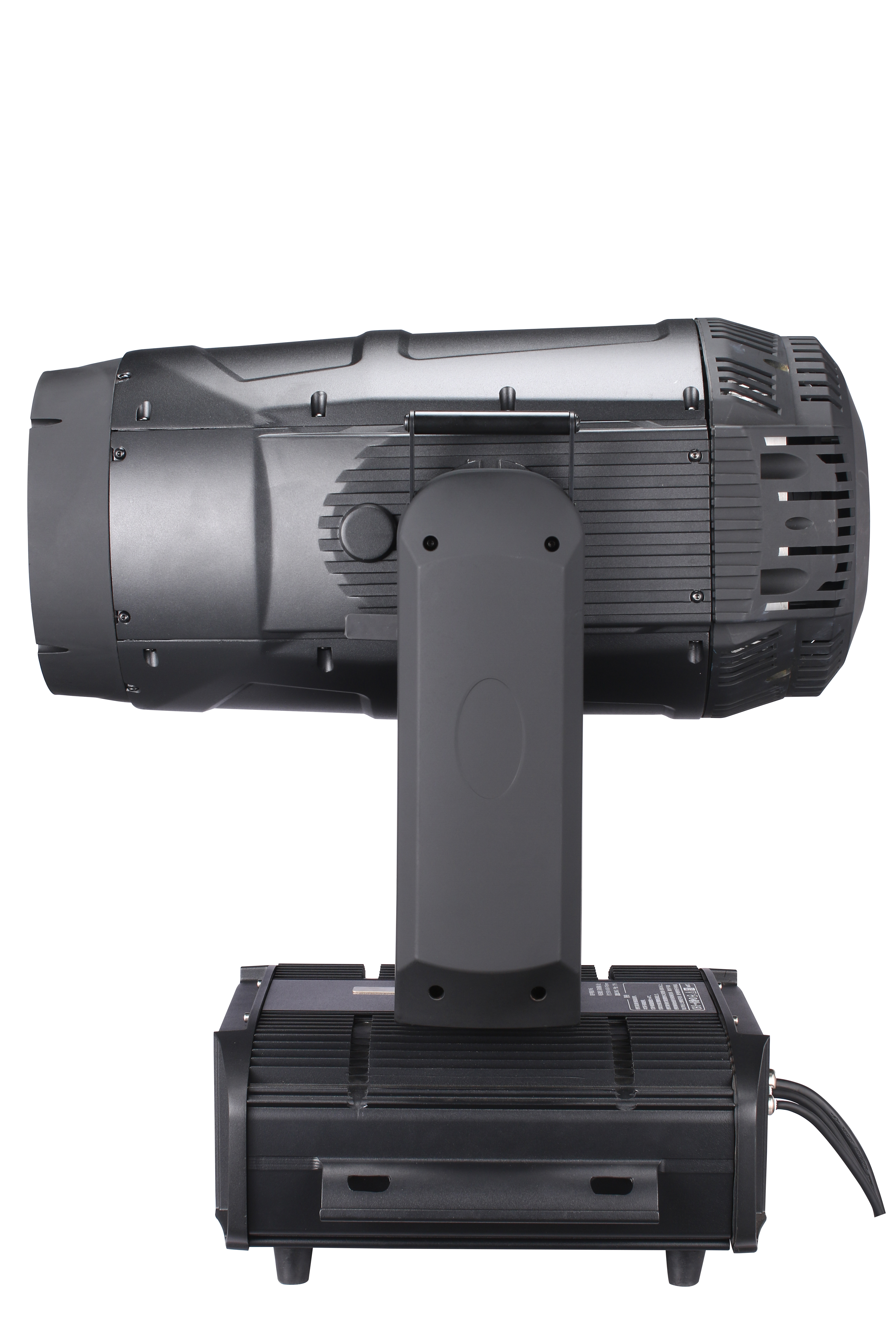

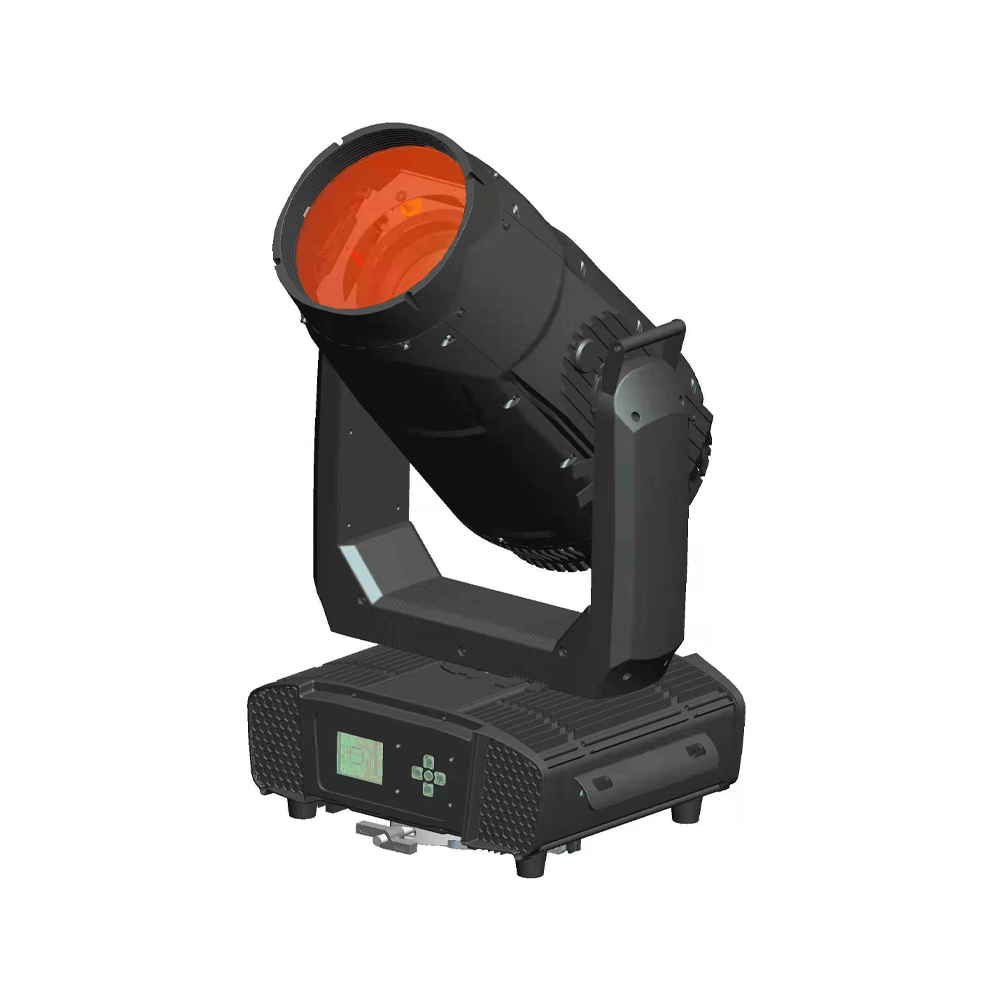

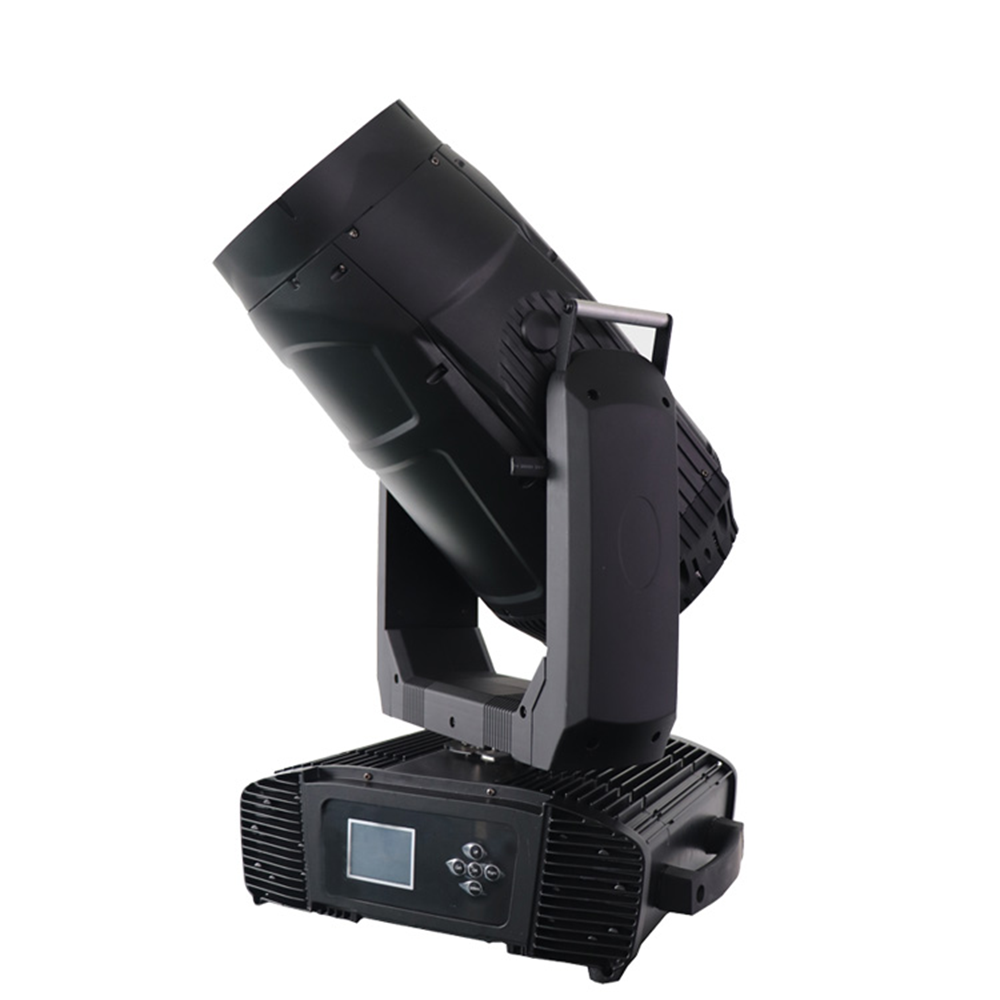

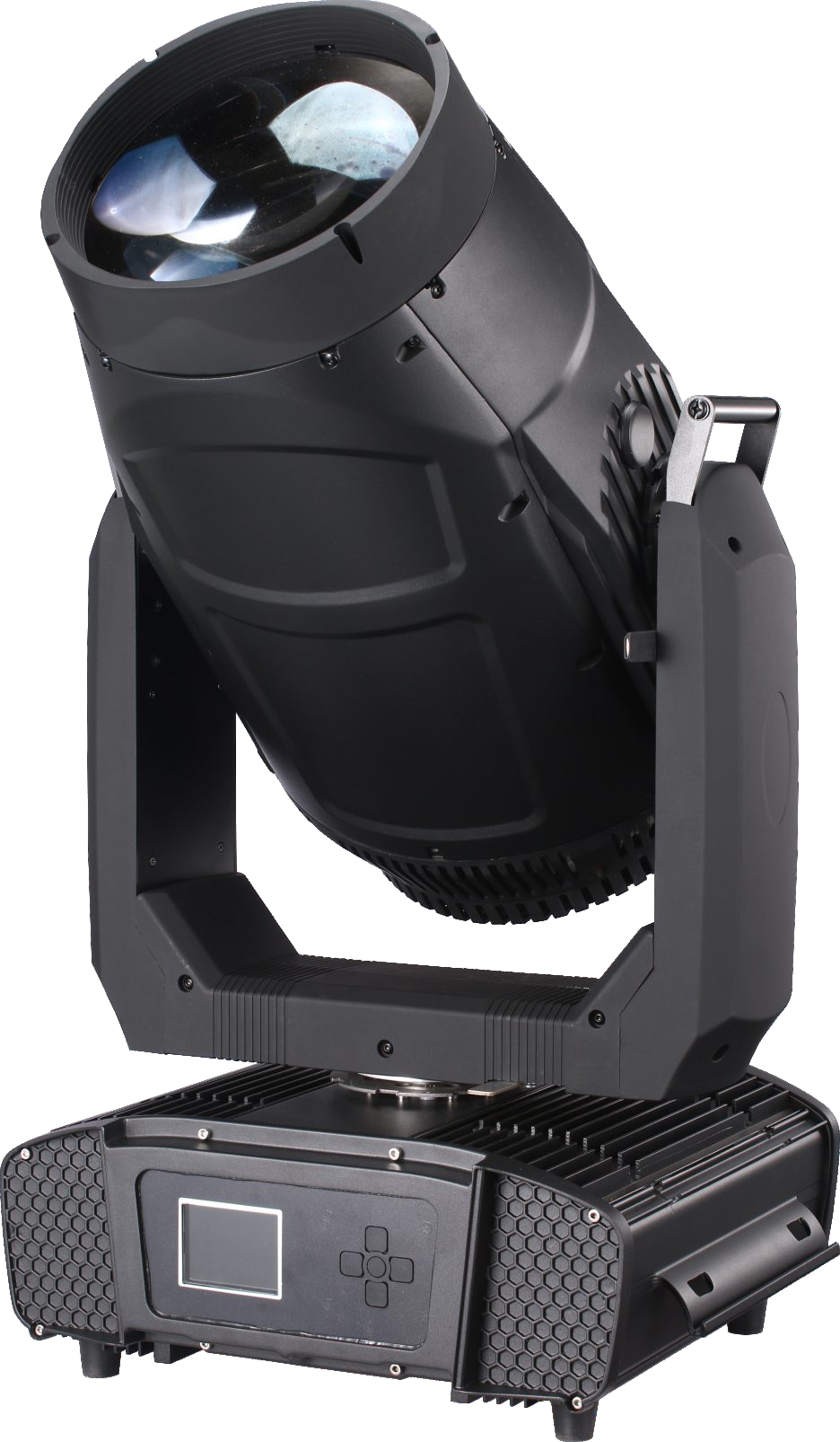

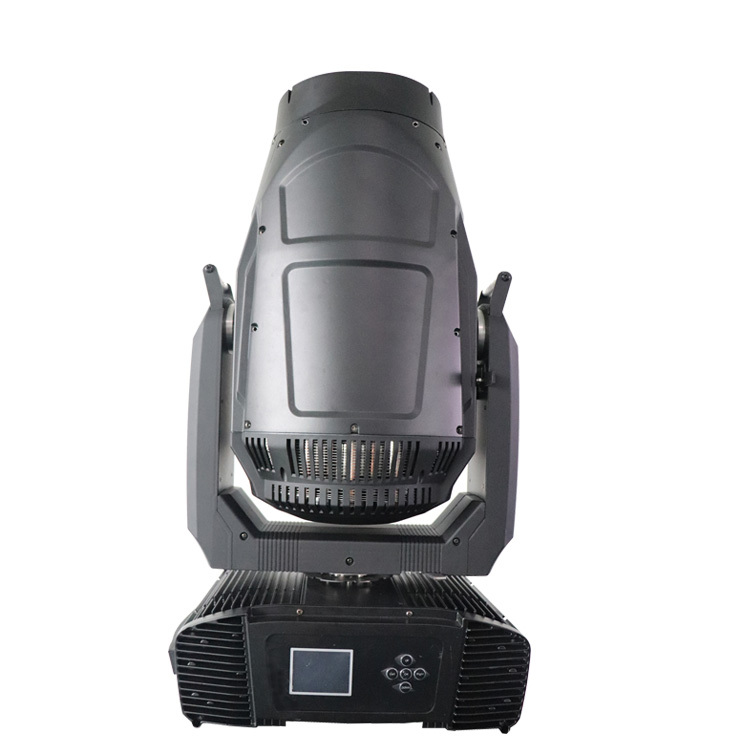

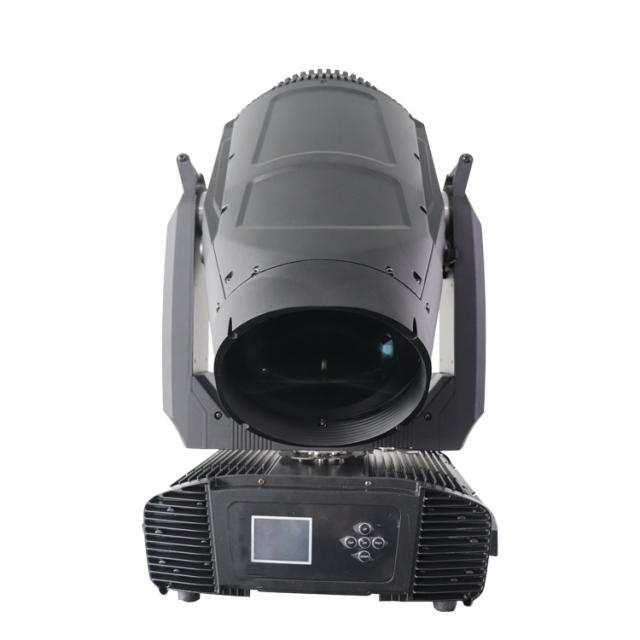

IP66 300W RGB Laser Beam Moving Magnesium Alloy Die-casting

No.UB-PL300RGB
IP66 · 10km Visible Beam · Full RGB Spectrum
  • 🔴🟢🔵 Full-Color RGB Laser Engine — pure additive RGB mixing, No filters, no brightness loss,
  • 🚀 10km Visible Beam — ultra-tight 0.5° beam cuts through sky, fog, and city lights. Visible up to 10 kilometers — a statement piece no LED fixture can match.
  • 💧 IP66 All-Weather Rated — fully sealed for outdoor festivals, landmarks, and permanent installation. Rain, dust, humidity — show goes on.
  • Infinite Color Palette — from deep saturated beams to delicate pastels, full spectrum control via RGB additive mixing. Perfect for brand colors and themed shows.
  •  Built for Permanent Outdoor Use — 20,000+ hour laser lifespan, intelligent thermal management, corrosion-resistant housing.                                                                                     Applications: Landmark lighting · Outdoor festivals · Sky beam shows · Theme parks · Concerts · Architectural lighting · City beautification · Large-scale events
  • IP66 300W RGB Laser Beam Moving Magnesium Alloy Die-casting
  • IP66 300W RGB Laser Beam Moving Magnesium Alloy Die-casting
  • IP66 300W RGB Laser Beam Moving Magnesium Alloy Die-casting
  • IP66 300W RGB Laser Beam Moving Magnesium Alloy Die-casting
  • IP66 300W RGB Laser Beam Moving Magnesium Alloy Die-casting
  • IP66 300W RGB Laser Beam Moving Magnesium Alloy Die-casting
  • IP66 300W RGB Laser Beam Moving Magnesium Alloy Die-casting
  • IP66 300W RGB Laser Beam Moving Magnesium Alloy Die-casting
  • IP66 300W RGB Laser Beam Moving Magnesium Alloy Die-casting
  • IP66 300W RGB Laser Beam Moving Magnesium Alloy Die-casting
  • IP66 300W RGB Laser Beam Moving Magnesium Alloy Die-casting

Description


OPTICAL SYSTEM

  • Laser light source: RGB 300w Laser
  • llluminance:    877500LUX @20m / 390000LUX @30m
  • Light source life: 20,000 hours;
  • Color temperature: 7500K(customizable)
  • Beam angle:    0.6° (almost parallel light beam)
  • Optical lens:    imported optical lens, light exit 200mm
  • Dimming: 0-100% linear dimming
  • Focus zoom:    0~100% Electronic linear HD focus

POWER SYSTEM
  • Voltage:    AC110-240V 50/60Hz;
  • Power: 420W
  • DMX connectors:    3 pin or 5 pin XLR IN/OUT
  • Power connectors: IP66 Power head input

DYNAMIC EFFECTS
  • Static Gobo :  17 + white gobos, Variable speed jitter, Bi-direction flow dynamic effect
  • Color: RGB laser based system with derating to preserve laser diodes
  • Prism: 1 prism (5 prism)Bi-direction
  • Fog: 1 independent fog effect, the light spot is soft and natural
  • Strobe: 0.5-20HZ with pulse flickering and synchronous/asynchronous flickering effects

CONTROL SYSTEM
  • Pan/Tilt:    540°/270° ,Automatic Pan / Tilt position correction system, 16-bit precision fine-tuning feature
  • Intelligent control: Display board can record device’s using time , show device’s temperature, channel data and software version .
  • Communication Design: DMX offers both wired and wireless transmission, allowing for convenient and quick software upgrades
  • Cooling system: Copper tube + fan cooling structure + temperature intelligent monitoring+Self-adjusting variable speed fan, Safety protection against excess temperature
  • Control protocol:    DMX512, Self-propelled, voice-controlled, master-slave mode
  • Channel mode: 12CH/15CH

LIGHT BODY FEATURE
  • Housing: One-piece die-casting/aerospace magnesium alloy
  • Light color: black
  • Working Temperature:     -20~45℃ (Other customization option)
  • Product size:    34.3x39.3x74.5cm NW: 28.5kg
  • Carton size: 43x45x85cm GW 32kg
