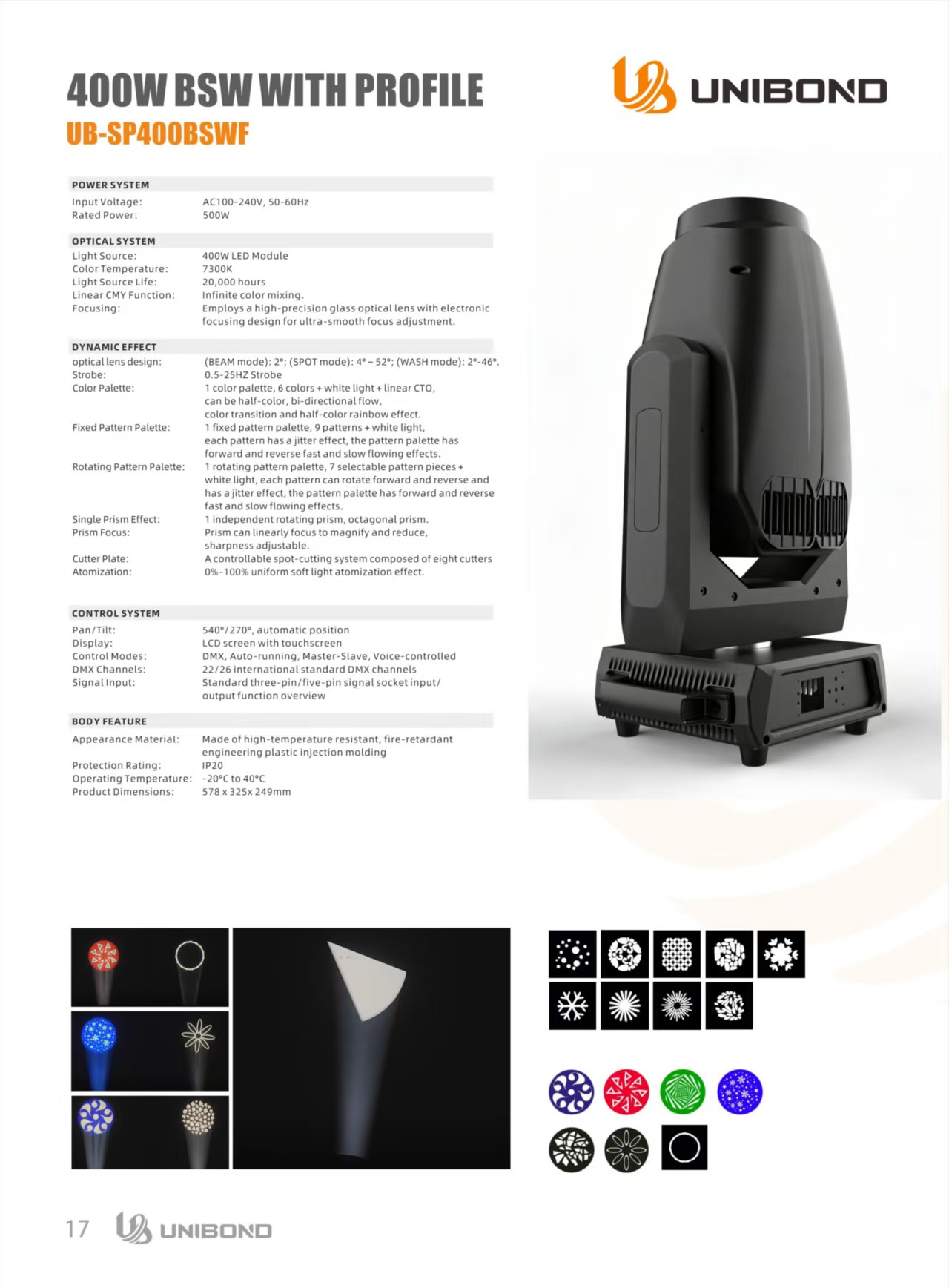

POWER SYSTEM
Input Voltage: AC100-240V, 50-60Hz
Rated Power: 500W
OPTICAL SYSTEM
Light Source: 400W LED Module
Color Temperature: 7300K
Light Source Life: 1500 hours
Linear CMY Function: Infinite color mixing.
Focusing: Employs a high-precision glass optical lens with electronic focusing design for ultra-smooth focus adjustment.
DYNAMIC EFFECTS
Three-in-one optical lens design: (BEAM mode): 2°; (SPOT mode): 4°～52°; (WASH mode): 2°-46°.
Strobe: 0.5-25HZ Strobe
Color Palette: 1 color palette, 6 colors + white light + linear CTO, can be half-color, bi-directional flow, color transition and half-color rainbow effect.
Fixed Pattern Palette: 1 fixed pattern palette, 9 patterns + white light, each pattern has a jitter effect, the pattern palette has forward and reverse fast and slow flowing effects.
Rotating Pattern Palette: 1 rotating pattern palette, 7 selectable pattern pieces + white light, each pattern can rotate forward and reverse and has a jitter effect, the pattern palette has forward and reverse fast and slow flowing effects.
Single Prism Effect: 1 independent rotating prism, octagonal prism.
Prism Focus: Prism can linearly focus to magnify and reduce, sharpness adjustable.
Cutter Plate: A controllable spot-cutting system composed of eight cutters
Atomization: 0%–100% uniform soft light atomization effect.
CONTROL SYSTEM
Pan/Tilt: 540°/270°, automatic position
Display: LCD screen with touchscreen
Control Modes: DMX, Auto-running, Master-Slave, Voice-controlled
DMX Channels: 22/26 international standard DMX channels
Signal Input: Standard three-pin/five-pin signal socket input/output function overview
BODY FEATURE
Appearance Material: Made of high-temperature resistant, fire-retardant engineering plastic injection molding
Protection Rating: IP20
Operating Temperature: -20°C to 40°C
Product Dimensions: 578 x 325x 249mm
