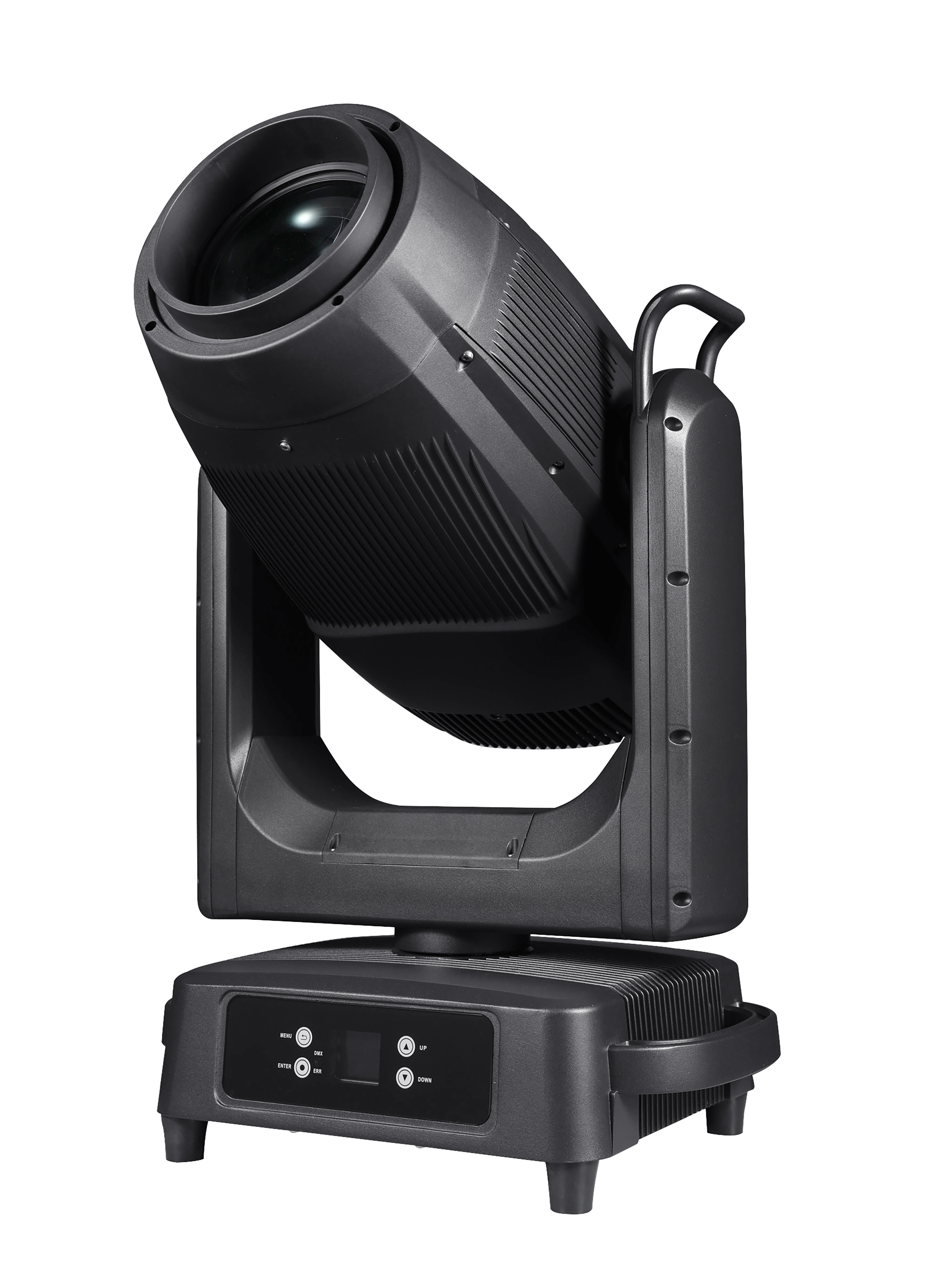

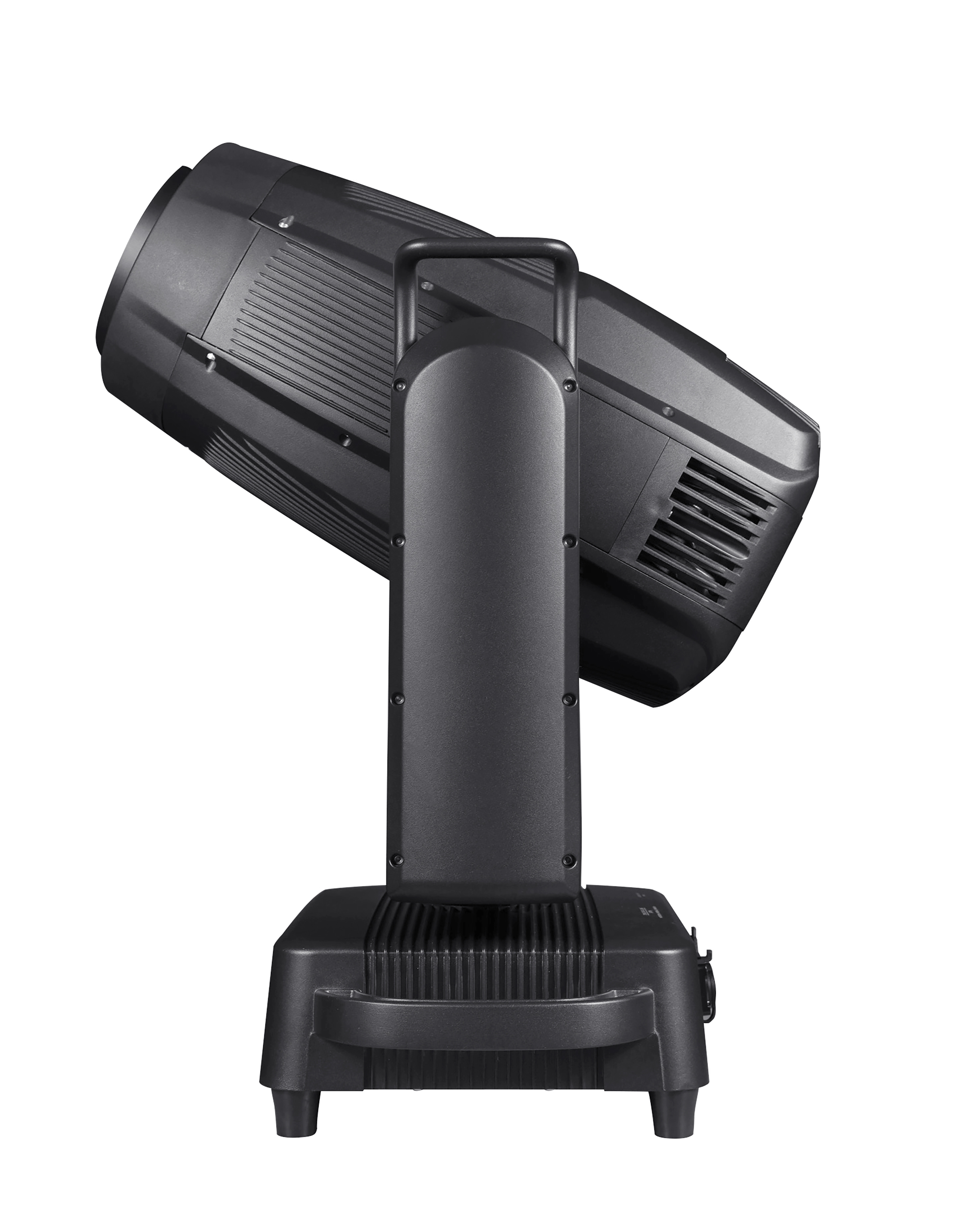

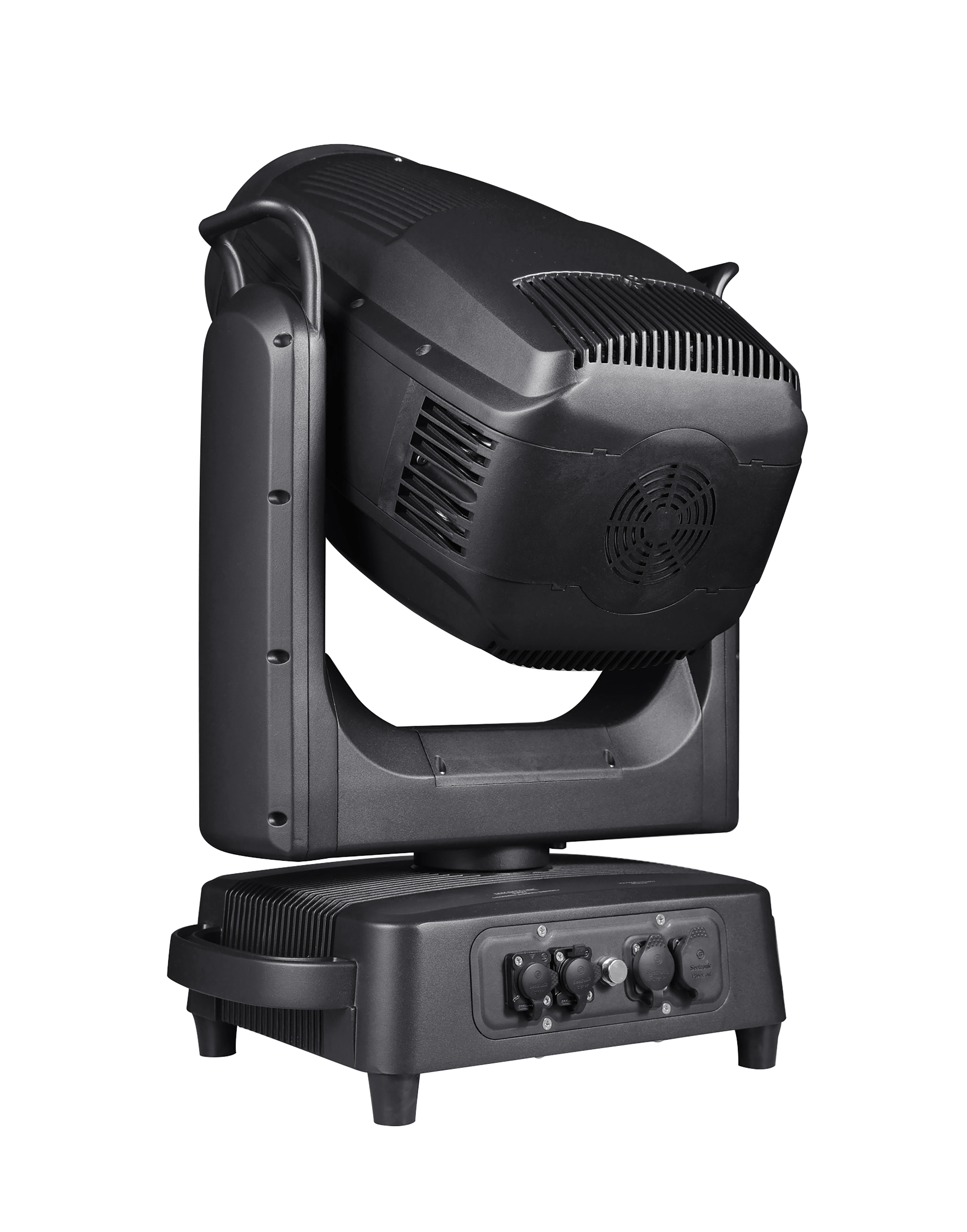

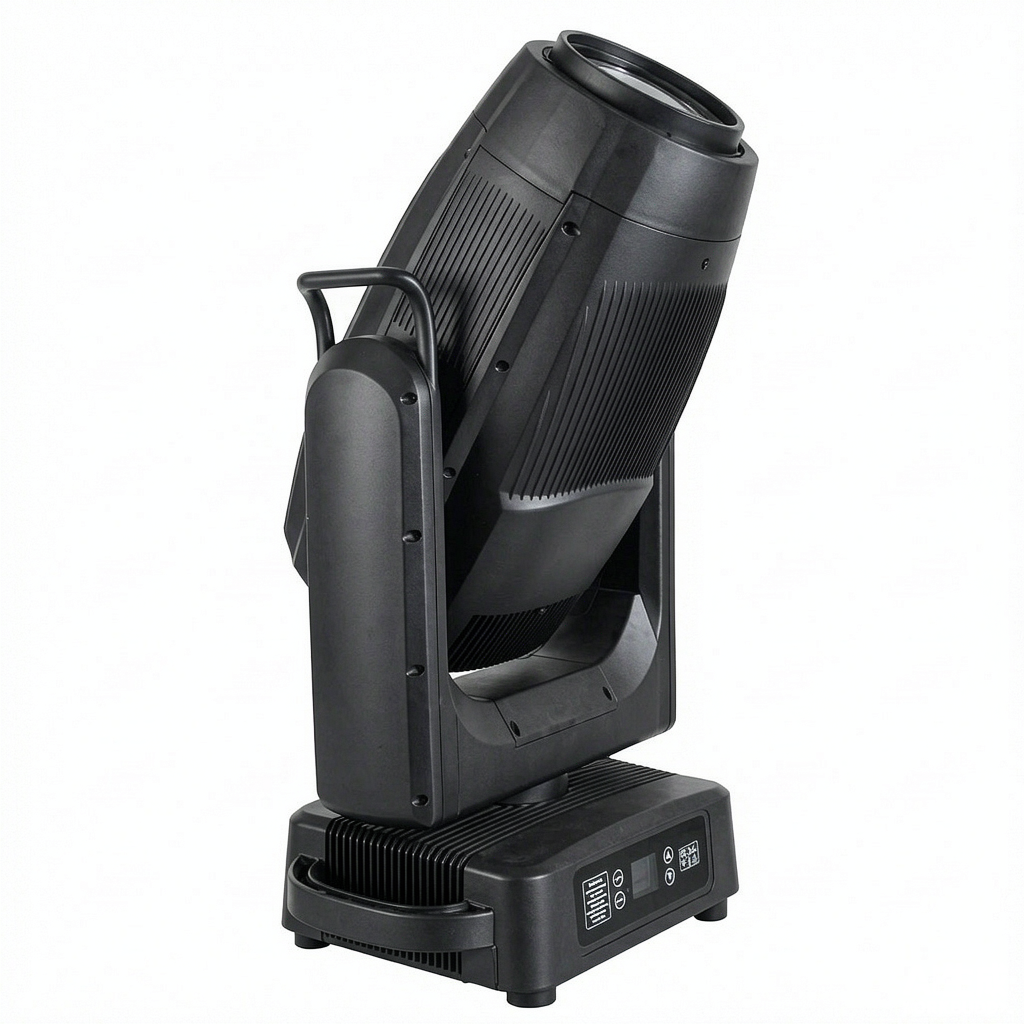

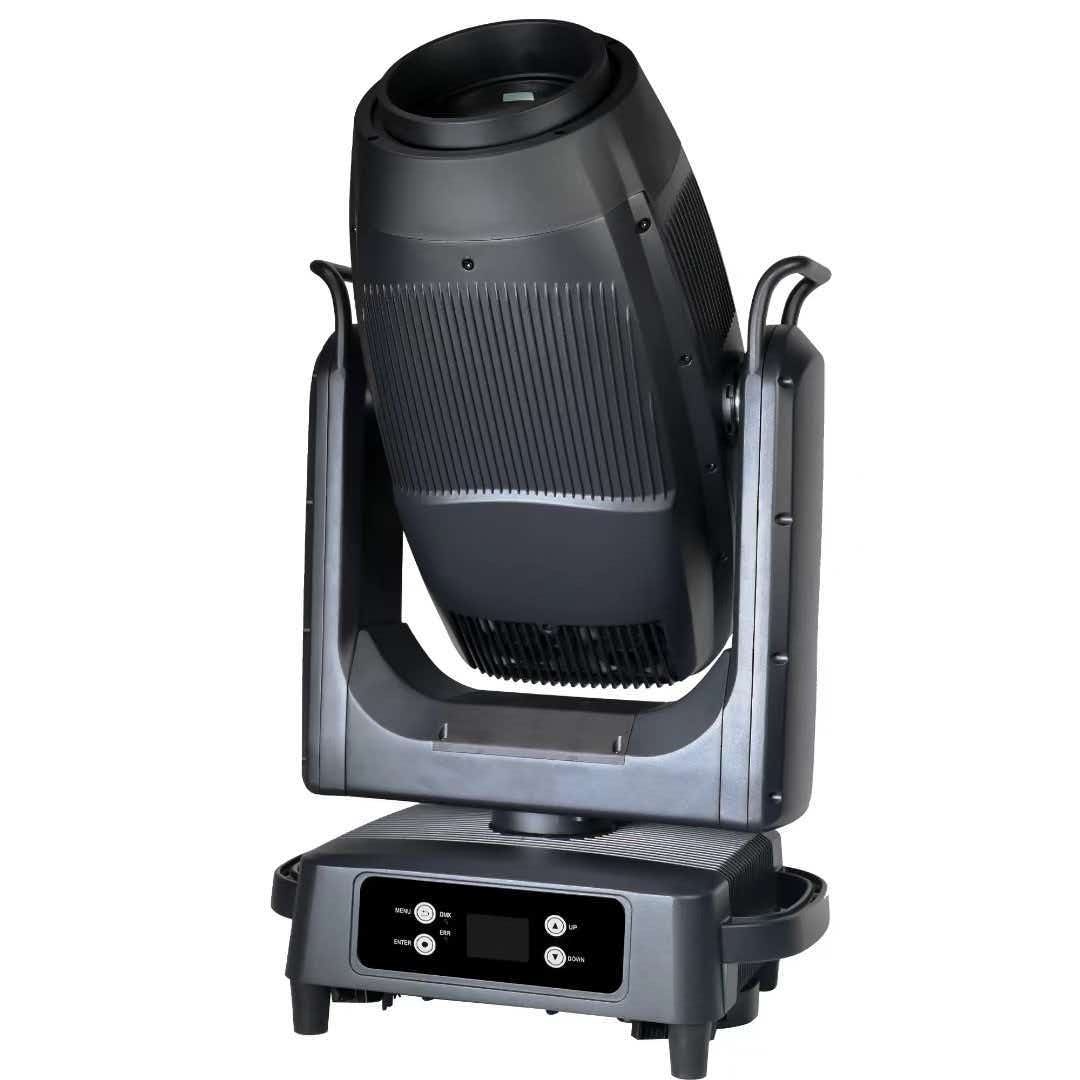

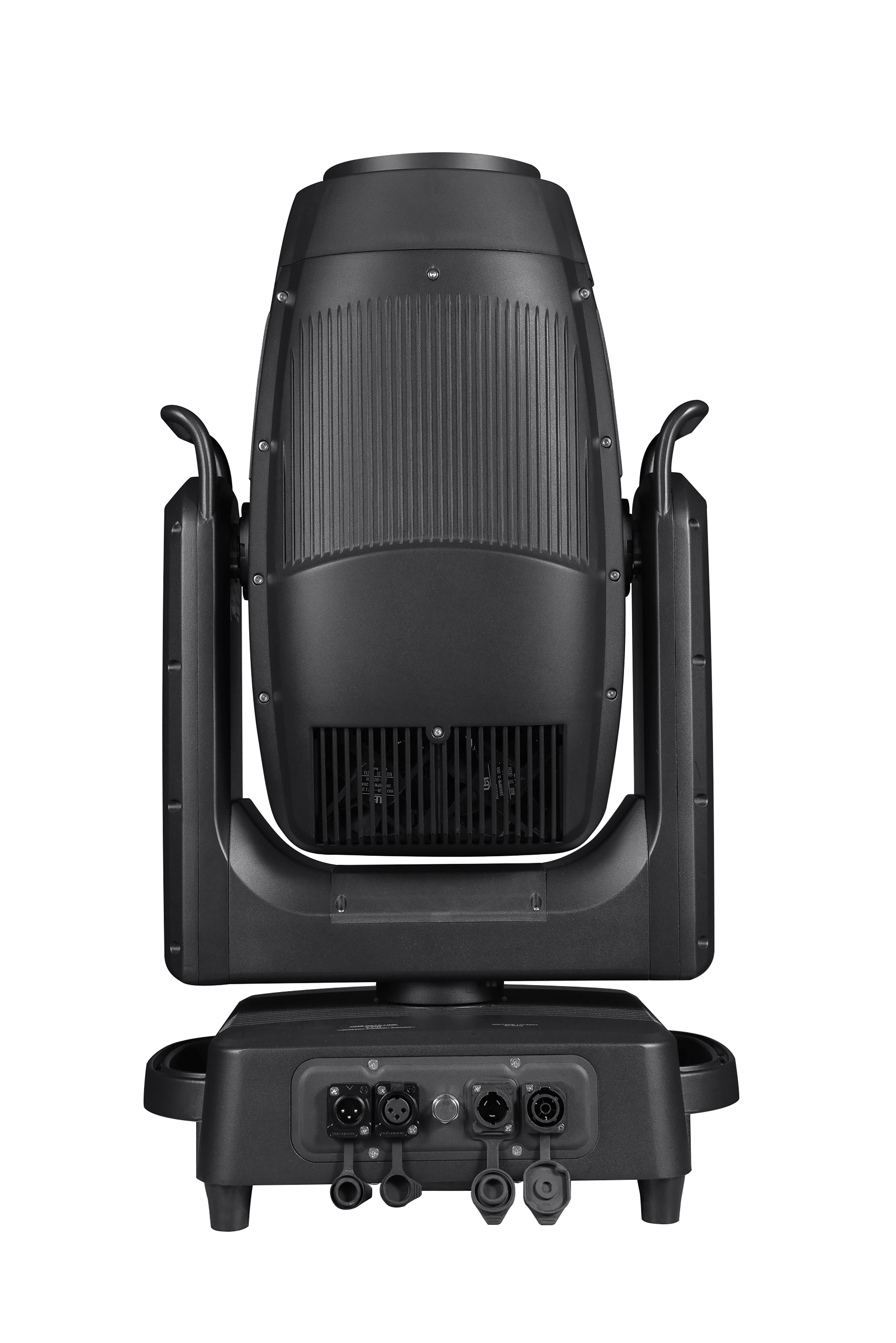

IP66 LED1000W BSWF Magesium Moving

No.UB-SP1000F IP

Alloy · IP66 · 4-in-1 Hybrid Moving Head

1000W High-Output LED — punchy beam, 5°–42° zoom
IP66 Magnesium Alloy Body — 30% lighter than aluminum, fully weather-sealed
CMY + CTO Color System — smooth mixing, 6-color wheel, dual CRI modes (70+ / 90+)
4-Blade Framing — independent control, 90° rotation, clean light shaping
Essential Effects — 7 rotating gobos, 8 static gobos, animation wheel, 3-facet prism, frost
Same power and features the industry relies on — just lighter, tougher, and fully weather-sealed. Real value for rental and installation.

Pro Version available — Clay Paky Arolla-grade premium optical coating for designer-level precision.

Applications: Outdoor events · Rental · Theater · Clubs · Corporate · Theme parks · Architectural

Add to Quote List View Quote List

Stage luminaires - Full concert

Description

LIGHT SOURCE & OPTIC

Light source: White LED 850W
Lifespan: 20,000H
Color temperature: 7000K(customizable)
Lens diameter: 135mm
Beam angle: 5°–50°

EFFECTS

Pattern cutting: 4 groups of 8-way cutting pieces, can cut any figure, with 145° rotation
Color plate: 5 colors + white light
Gobo Wheel : a fixed Gobo wheel with 7 gobo+ white ; A rotating Gobo with 6 pattern pieces + white c
One effect disc, with flame, water dynamic effect
CTO: Independent cut-in CTO
CMY: Independent plunge CMY, linear CMY color switching, endless color mixing
Prisms: 4 prisms, bidirectional rotation, with positioning function
Focusing: electronic focusing

CONTROL & PROGRAM

4 touch buttons
Control: DMX512
DMX Channel:34CH

POWER SUPPLY

Input voltage: AC100-240V 50/60Hz
Consumed Power: 1000W

MOVEMENT

Pan:540 degrees
Tilt: 270 degrees

BODY

Magnesium Aluminum IP66 body

WEIGHT & SIZE

NW: 27.8KG
Carton box 1in1:810*400*480 mm

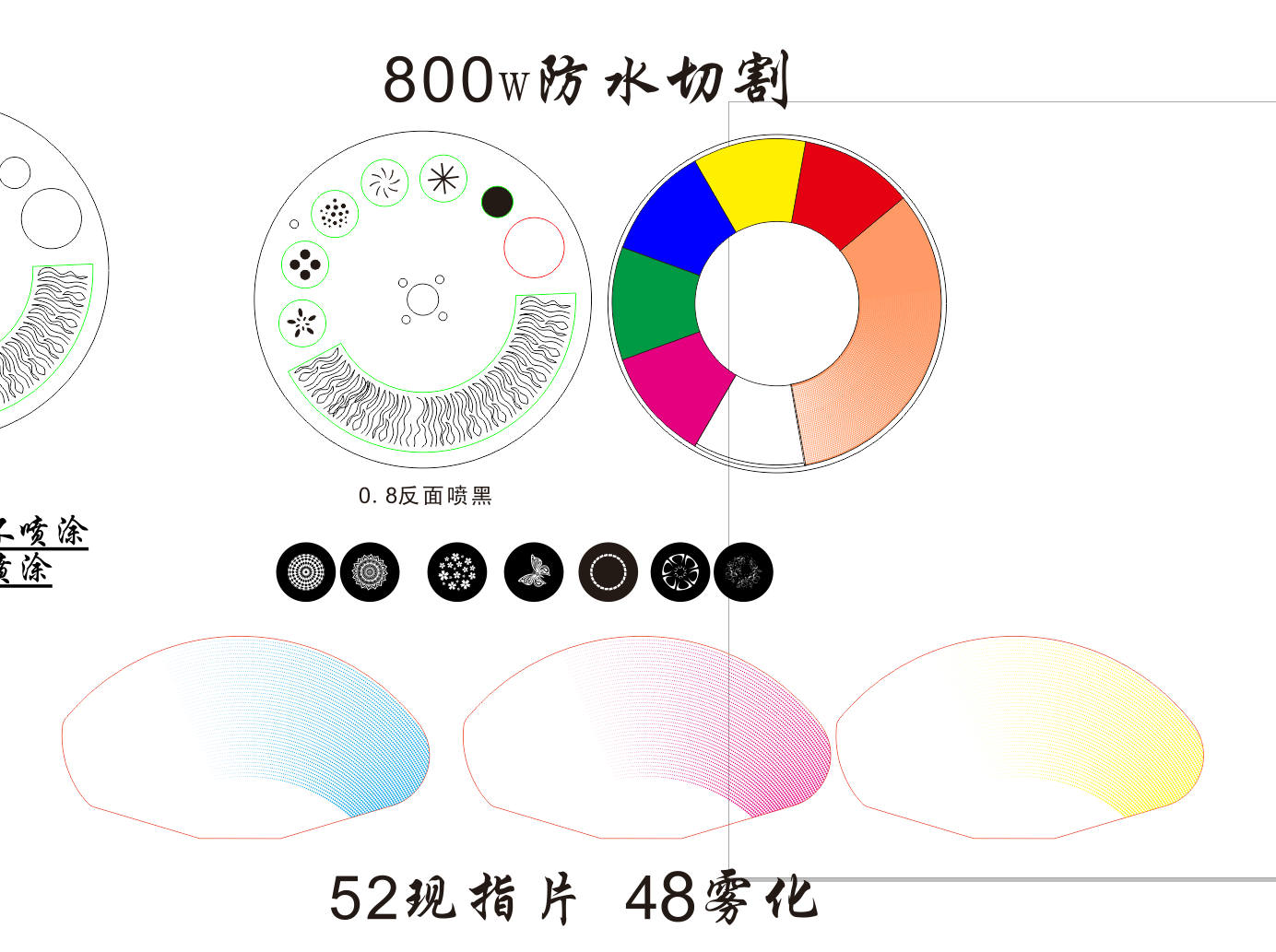

Effect

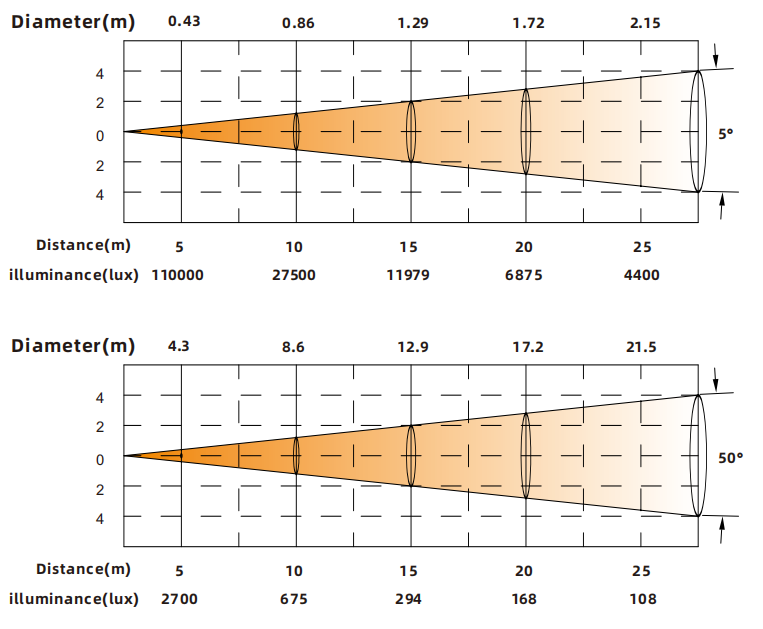

Illuminance
