Description
Key Features
Input Voltage: AC 90-240V, 50-60Hz
LED: 18 x 10W (RGBW) LED
Channels: 8 channels
LED Lifespan: 50,000 hours
Color Temperature Adjustment: Linear adjustment from 2800K to 7500K
Beam Angle: 15°/25° (default); 40°/60° (optional)
Optical System: High-transmittance PMMA optical lenses ensure uniform light distribution
Dimming Technology: High-precision dimming for smooth, refined brightness control
Color Control: Supports individual or mixed color dimming; fully adjustable color variations; features a color-chasing (flow) function with adjustable speed
Light Effect Characteristics: No color shadowing, uniform wash, rich color saturation, and soft tones

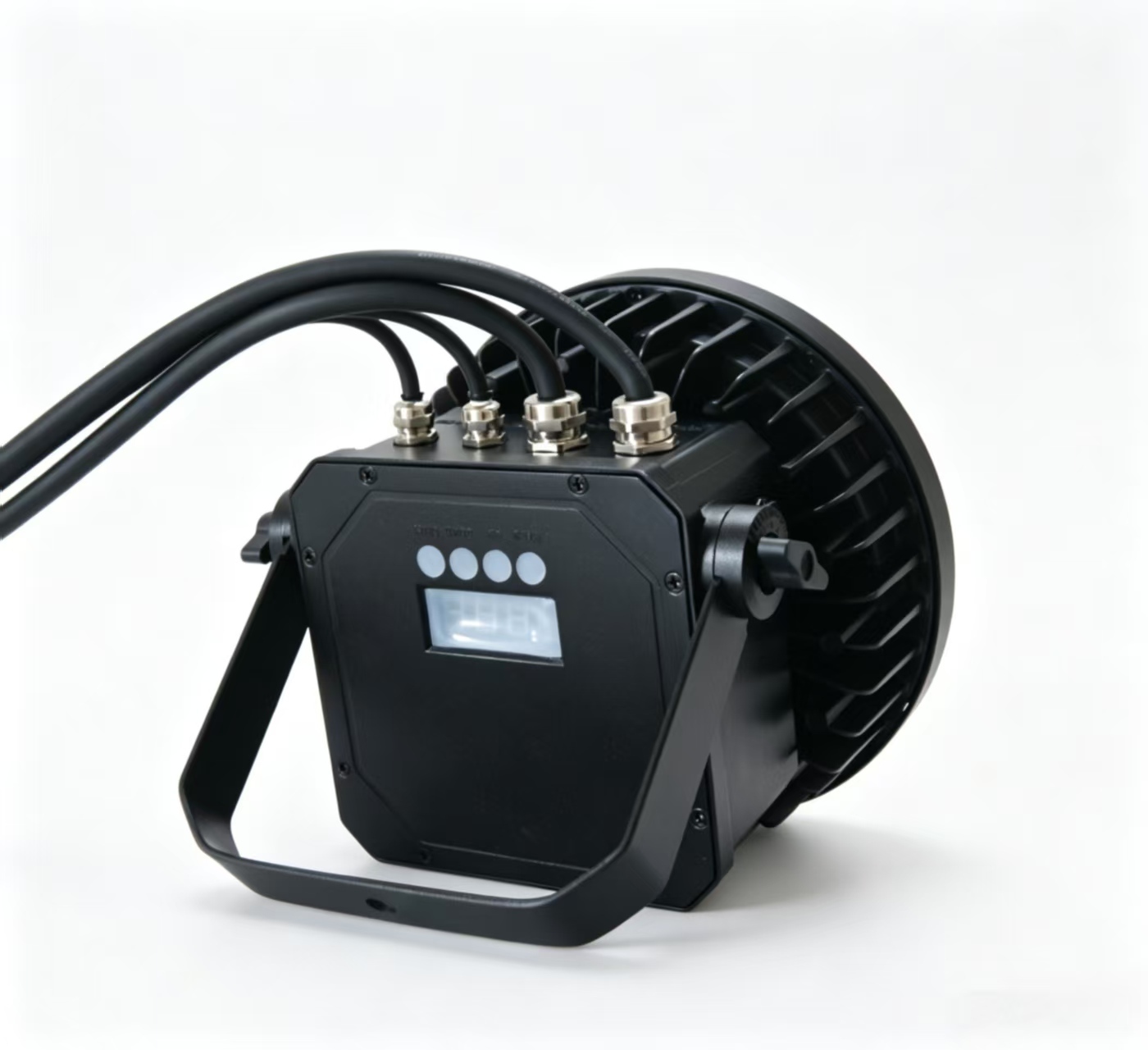

Display: LED display
Cooling: Aluminum heat sink
Protection Rating: IP66
Operation Modes: Supports standard DMX512, sound-activated, auto-run, and master-slave modes
RDM Technology: Built-in RDM functionality for efficient parameter configuration and firmware upgrades
Dimensions and Weight
Fixture Dimensions: 220 x 227 x 148 mm (4 kg)
Carton Dimensions: 260 x 260 x 200 mm (4.3 kg, 1 pc/ctn)
550 x 290 x 450 mm (18.05 kg, 4 pcs/ctn)
Flight Case Dimensions: 910 x 520 x 525 mm (66.55 kg, 10 pcs/ctn)
