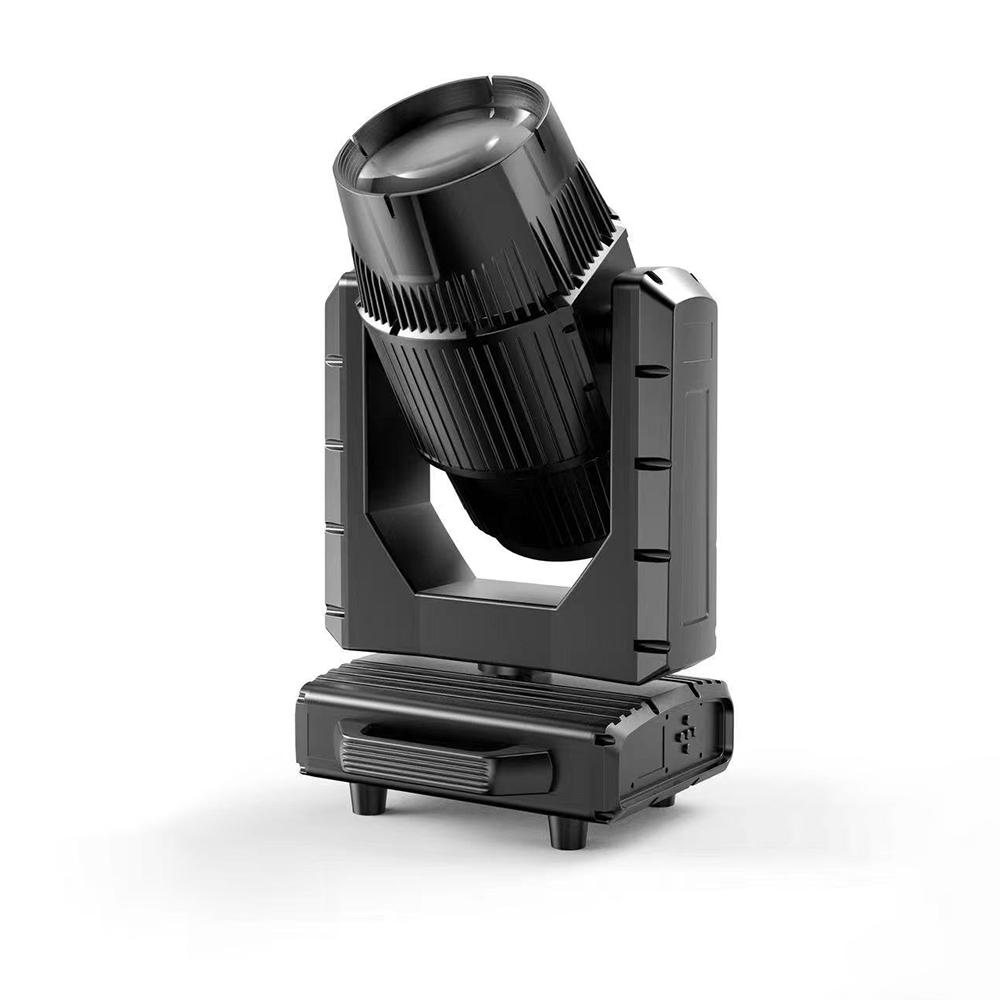

Ingenuity masterpiece: high-grade appearance, huge energy, thick light column waterproof beam lamp from the optics, structure, appearance and other aspects of the performance have reached a high standard, the use of the most advanced technology high-brightness light source, optical technology and rigorous industrial design to ensure the perfect presentation of lighting design.
Voltage: AC100V-240V 50-60Hz
Power: 600W
Lamp source: Original Philips 380W
Lens diameter: 200mm
Waterproof rating: IP65
Color temperature: 8000K
Color system: 13+ colorful+white, rainbow effect + atomization function
Gobo system:17 fixed Gobo +1 white
Focusing system: electronic focusing
Atomization: With atomization function, can achieve soft light effect
Stroboscopic: Dual motor independent stroboscopic effect, 0.5-20 times/SEC, adjustable speed
Motor: Pan/Tilt three-phase motor, so that the lamp fast and slow speed stability is high, positioning Angle is accurate!
Dimming curve: 0%-100% linear dimming, smooth and flicker-free
Beam Angle: 2-5°
Channels: 17 channels
Control mode 1: DMX 512, self-walking, master and slave machine self-walking, RDM function, you can use large control System control remote set address code.
Prism system :16 prism and (8+16+24) prism (prisms can be configured according to customer
requirements).
Display: LCD display, suitable for different installation positions, can be rotated 180°
Pan and Tilt: the use of high-precision three-phase motor, accurate positioning, smooth operation, automatic correction positioning
Pan: 540° rotation, resolution 8/16Bit, with Pan fine
Tilt: 270° rotation, resolution 8/16 bit, with Tilt fine
Heat dissipation system: Using the physical fan heat method, using the air convection system
method to use software to analyze and calculate the heat flow of the lamp, quickly solve the internal heat of the body, extend the light decay time of the light source, ensure the service life of the lamp, and design a low noise heat dissipation system with excellent fan drive performance and extremely low noise.
